Braams Farm 180kVA 140kWp AC-DC coupled Grid tie solar system

Braams Farm Harnesses Solar Energy with Specialized Solar Systems

Written by Arno Menkveld on February 14, 2025. Posted in Commercial solar solutions.

The commercial farm, Braams Farm, is a well-established (est.1949) feedlot in Cape Town and is known for its exceptional cattle farming operations. The facility upholds high standards of cleanliness and animal welfare, ensuring that the cattle are healthy and well cared for. Visitors often remark on the impressive condition of the animals and the efficient management of the farm.

Braams Farm took a major step toward energy independence with an advanced containerized embedded solar generator, installed by Specialized Solar Systems’ (SSS) commercial division. The AC-DC coupled hybrid solar system designed by the team provides a sustainable, cost-effective, and uninterrupted energy supply solution, supporting the farm’s operations with reliable power.

Braams Farm faced rising electricity costs due to high energy consumption, grid dependency, and vulnerability to power outages, necessitating a reliable, long-term energy solution with financial viability and a reduced carbon footprint. Specialized Solar Systems provided a hybrid AC/DC-coupled solar system, integrating optimized solar panel placement to minimize losses, high-performance Victron and Fronius inverters, and advanced battery backup for peak demand, load shedding, and night-time use. The system enables efficient energy management through remote monitoring via Victron VRM and Fronius web platforms, ensuring optimal performance and sustainability.

Solar Solution System Overview

Client Name: Braams Voerkale (Pty) Ltd
Country and Province: South Africa, Western Cape
Location of the Project: Durbanville, Cape Town
Problems faced by the client: Very high energy usage and costs, grid dependency, and vulnerability to power outages, requiring a reliable, long-term energy solution with financial viability and a reduced carbon footprint.
Solar Solution System Type: Embedded Generator with Net Metering & Energy Banking
Inverter Type: 12 x 15kVA Victron Quattro’s and 4 x Fronius 27kVA Eco Grid-Tie Inverters
Total Inverter kVA: 180 kVA
Solar Panel Mount Position: Elevated substructure, doubling as a feeding lot
Storage kWh: 2 x 100/80 Freedom Won LiFePO4
Solar Arrays kWp: 140.8 kWp (256 x 555 W Canadian Solar Panels)
System Annual Average Energy Production: 244 MWh
Annual Carbon Dioxide Savings (CO2): 211tons
System Payback Period: 6 years
System Life Span: 20 years

Financial and Environmental Impact

This agricultural solar-powered solution not only ensures energy security for Braams Farm but also provides long-term financial relief. With Eskom’s annual tariff increases, solar energy investment translates into substantial cost savings. Additionally, the reduction of 211 tons of CO2 emissions annually aligns with global sustainability goals.

Braams Farmcommitment to renewable energy marks a significant milestone in agricultural sustainability, and Specialized Solar Systems is proud to be the driving force behind this transformation.

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

Contact us now (Tel: 044 878 1126, Mon to Thu 8AM–5PM and Fri 8AM–2PM) to explore tailored solar solutions for your business.
Dive into the future of energy efficiency and cost savings! View more information about our commercial section at this link.
Discover how solar innovation is transforming agriculture! View more information about our agriculture section at this link.
Witness the power of sun-driven success! Check out some of our recent solar-powered commercial projects at this link.

Take the first step towards a brighter, greener future with Specialized Solar Systems. Click the links above to explore, and let’s bring your sustainable vision to life!

Biotek Industrial Park 345kVA 504.9 kWp grid-tie solar system

Biotek Industrial Park: Harnessing the Power of the Sun

Written by Arno Menkveld on January 13, 2025. Posted in Commercial solar solutions.

Biotek Industrial Park in George faced soaring energy costs and heavy grid reliance. Specialized Solar Systems Commercial team came up with a grid-tie solar solution.

Our commercial team installed a powerful 504.9 kWp grid-tie system, featuring 3 SUN2000 115 kTL Huawei inverters. The 504.9 kWp rooftop solar arrays should produce an average of 810.8 MWh of energy annually. The results? Lower energy expenses, a 2–3 year payback period, and 702.5 tons of CO₂ saved yearly.

This project showcases how industry can embrace sustainability energy and thrive.

In this video project manager Wiehan Stoop presents a basic overview of the installed commercial grid-tied solar power system

Project details:

Client Name: Biotek Industrial Park
Country and Province: Western Cape, South Africa
Location of the Project: George Industrial Park
Problems faced by the client: Very high energy usage/high costs
Solar Solution System Type: Grid-Tie System
Inverter Type: 3 x SUN2000 115 kTL Huawei Inverters
Total Inverter kVA: 345 kVA
Solar Panel Mount position: Roof Mount, Northern Orientation
Storage kWh: NA (Grid-tied)
Solar Arrays kWp: 504.9 kWp
Solution Provided: Savings from the Grid Usage
System Annual Average energy Production (MWh): 810.8 MWh
Annual carbon dioxide savings (C02) (tons): 702.5 tons
System Payback Period (Years): 2-3 Years
System Life Span (Years): 20 Years

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

Contact us now (Tel: 044 878 1126, Mon to Thu 8AM–5PM and Fri 8AM–2PM) to explore tailored solar solutions for your business.
Dive into the future of energy efficiency and cost savings! View more information about our commercial section at this link.
Discover how solar innovation is transforming agriculture! View more information about our agriculture section at this link.
Witness the power of sun-driven success! Check out some of our recent solar-powered commercial projects at this link.

Take the first step towards a brighter, greener future with Specialized Solar Systems. Click the links above to explore, and let’s bring your sustainable vision to life!

Biotek Industrial Park 345kVA 504.9 kWp commercial grid-tie solar power system

Commercial hybrid solar installation at Surgical Eye Clinic in George

Medical institutions in George Lead the Way in Energy Efficiency

Written by Arno Menkveld on October 9, 2024. Posted in Commercial solar solutions.

Commercial Solar Power Solutions: Securing Energy Independence for Garden Route Eye Clinic and George Surgical Centre

In today’s world, the demand for sustainable and efficient energy solutions is paramount. Solar power has emerged as a viable and environmentally friendly alternative to traditional energy sources. Garden Route Eye Clinic and George Surgical Centre, two prominent health institutions in the region, have taken a significant step towards a greener future by implementing commercial solar power solutions with the help of Specialized Solar Systems.

These innovative installations are not only reducing energy costs but also contributing to a healthier planet and promoting energy independence.

By incorporating cutting-edge technology from leading brands like Victron and Fronius, these healthcare facilities have harnessed the power of the sun to meet their energy needs. The integration of lithium batteries ensures reliable and efficient storage, providing backup power during load shedding and optimizing energy usage.

Dual Systems for Dual Benefits

There are two separate solar power systems designed and installed for Garden Route Eye Clinic (GREC) and George Surgical Centre (GSC).GREC is equipped with a 3-phase, 45kVA system featuring our very own Energydock Energypod, while GSC has a larger 3-phase, 135kVA system with our very own Storagedock LV-comms stackable batteries. Both systems utilize Victron Quattro’s and Fronius Eco inverters to manage power from Jinko solar panels and store excess energy in LiFPO4 batteries for backup.

Responding to Load Shedding

When both health facilities approached Specialized Solar Systems (SSS) for an energy solution, South Africa was experiencing unprecedented load shedding. Stage 6 load shedding meant disruptions to critical medical services. For these facilities, reliable backup power is essential. Traditionally, this meant relying on diesel generators, but with skyrocketing fuel prices, this solution became increasingly expensive.

Independent Needs, Independent Systems

SSS, a solar power solution provider, commercial team conducted independent energy audits for both GREC and GSC. Each facility has separate electrical infrastructure and operates independently. This analysis determined the specific energy requirements of each location.

Designing for Resilience

Given the critical nature of medical facilities and the prevailing load shedding situation, SSS designed each system with battery storage capacity sufficient to carry the facility through a 4-hour power outage. The battery capacity for GREC is 45kVA 60kWh and for GSC it’s 135kVA 180kWh.

Adapting to Changing Energy Landscape

Since the project’s completion, South Africa’s energy environment has improved, with load shedding currently less frequent. This positive change allows for a more sophisticated approach to battery management.

Optimizing Savings Through Time-of-Use Tariffs

Both facilities operate on Time-of-Use (TOU) electricity tariffs, where the cost of electricity fluctuates based on peak and off-peak periods. SSS can now program the battery charge and discharge cycles to take advantage of these fluctuations. This “arbitrage process” further reduces energy costs and improves the financial viability of the installed solar systems.

Future-Proofing for Growth

The design also considered future expansion plans. A new building is under construction at GSC, with a second phase of the solar power system planned to accommodate the increased energy needs. This phase will add a further 90kVA capacity.

Retrofitting and Aesthetics

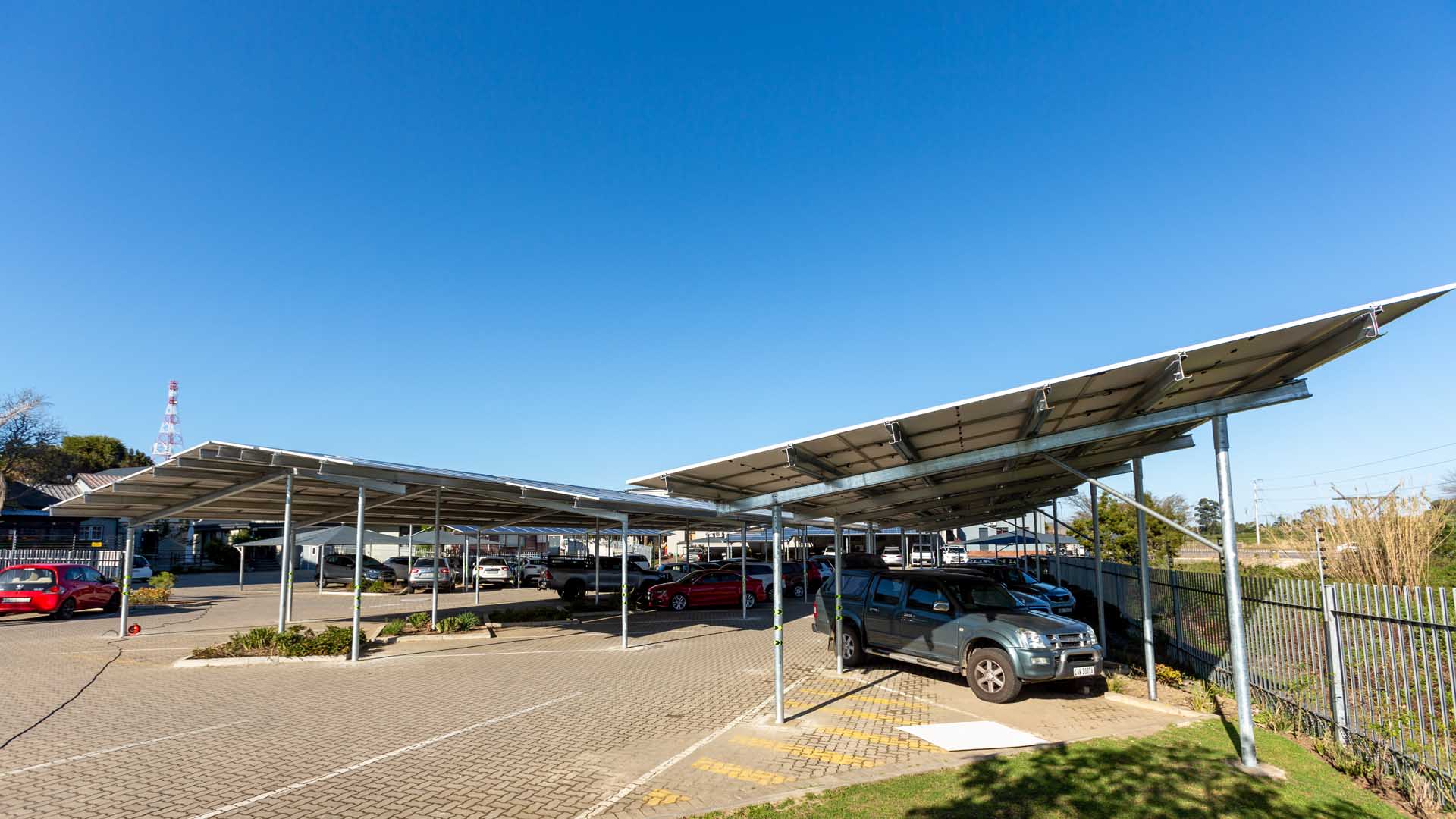

The entire system, encompassing both phases, was designed to seamlessly integrate with the existing facilities. This included retrofitting solar panels onto existing roof space and constructing a dual-function solar carport structure. This structure provides shade for visitor parking while accommodating a significant number of solar modules to meet the total energy needs of both facilities.

Meeting Client Objectives

From the outset, the primary goals for both GREC and GSC were energy security, energy independence, and cost savings. These goals encompassed reducing reliance on municipal electricity and minimizing diesel generator running costs. SSS designed the systems with these objectives in mind, while also collaborating with the clients to ensure a visually pleasing integration with the facility grounds.

Operational Success

Both the 135kVA system for GSC and the 45kVA system for GREC are now fully operational. The solar arrays generate sufficient energy to meet the daytime load and charge the batteries during daylight hours. The batteries then discharge during peak tariff periods, significantly reducing electricity costs. Additionally, a secondary charge cycle is scheduled for off-peak hours, further optimizing energy usage.

Conclusion

The successful implementation of solar power systems at Garden Route Eye Clinic and George Surgical Center demonstrates a commitment to sustainable practices and a brighter future. These initiatives not only benefit the institutions themselves but also set an example for others in the community to follow. As technology continues to advance, solar power will play an increasingly important role in meeting the world’s energy needs, especially for critical facilities like medical centers.

Phase 1: Solar Installations

System 1: Garden Route Eye Clinic

System Type: 3-phase 45kVA EnergyPod AC-coupled hybrid solar system

Inverters: 3 x 15kVA Victron Quatro’s, 1 x Fronius Eco 27kVA

Batteries: 60 kWh ES LiFPO4 batteries

Solar Panels: 74 x 555w Jinko panels (41.070kWp)

Expected Break-Even: 6 years

System 2: George Surgical Center

System Type: 3-phase 135kVA AC-coupled hybrid system

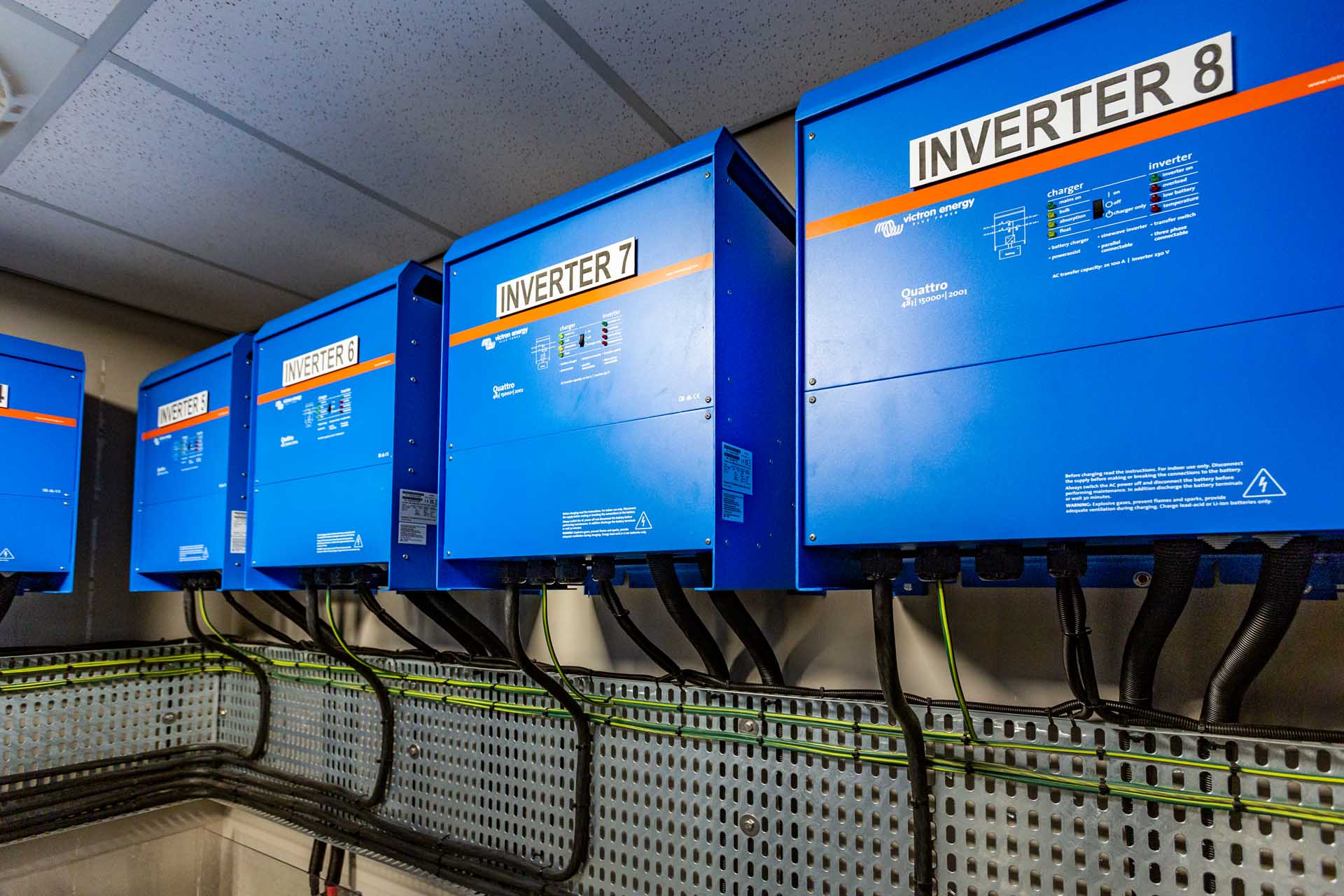

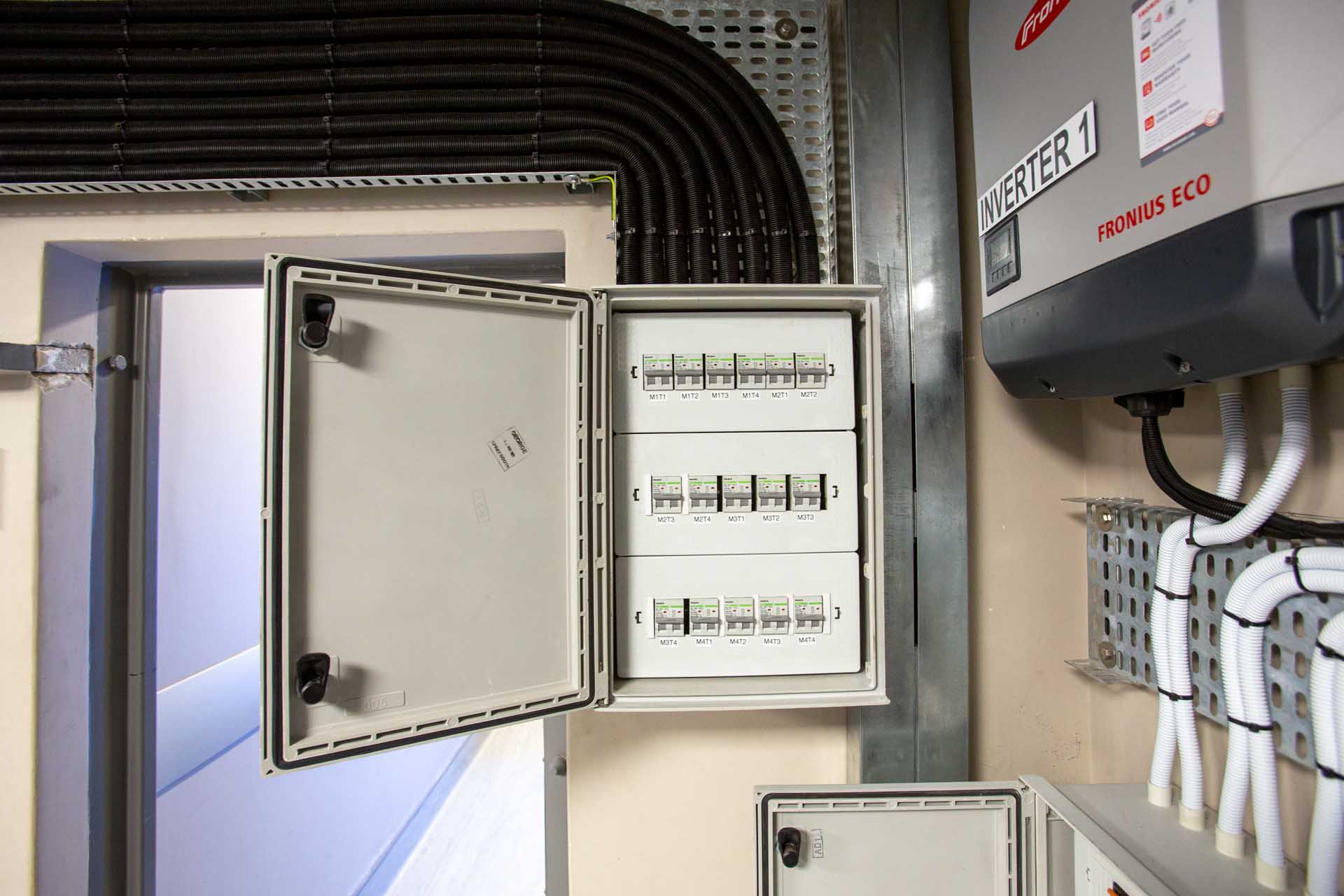

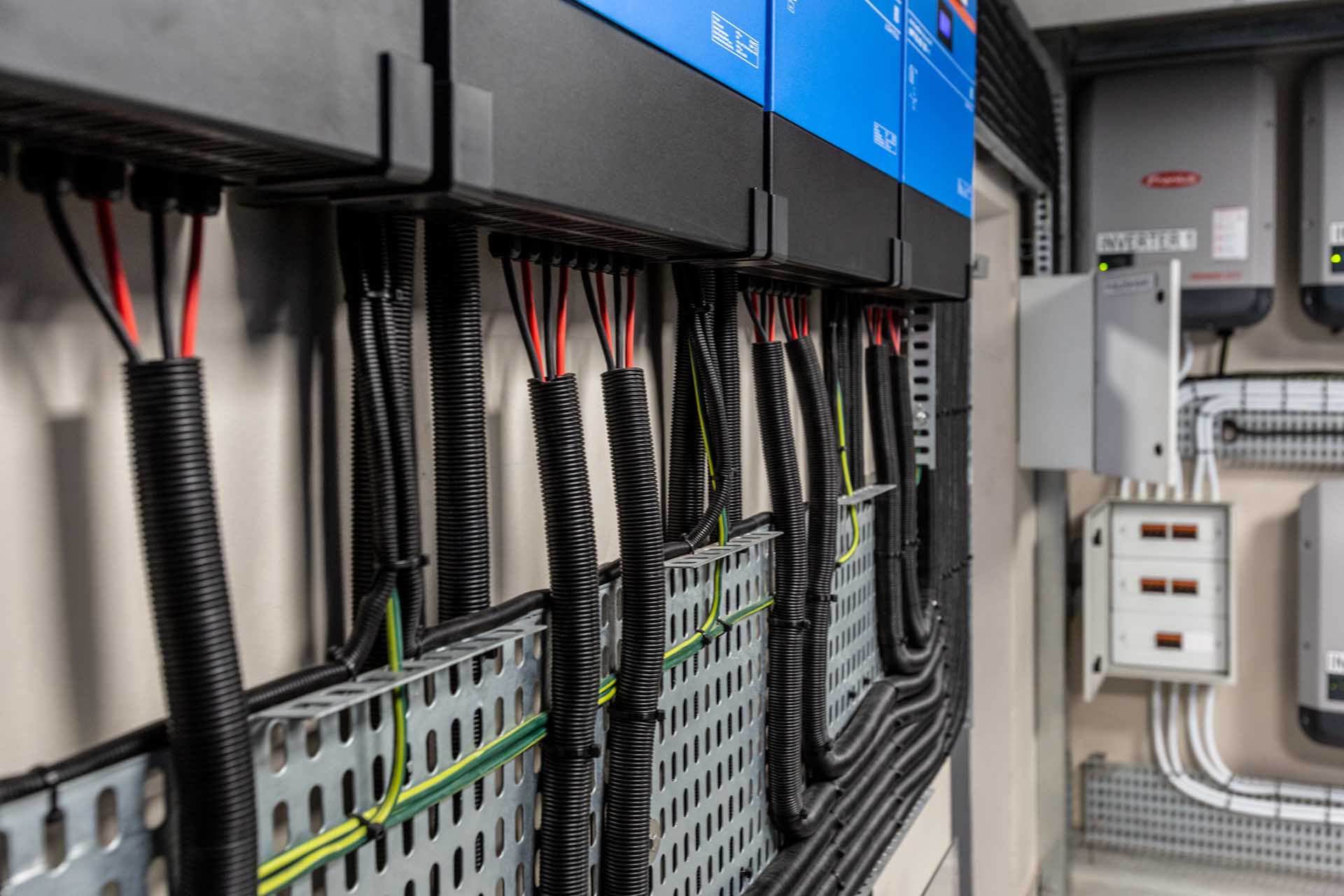

Inverters: 9 x 15kVA Victron Quatro’s, 5 x Fronius Eco 27kVA’s

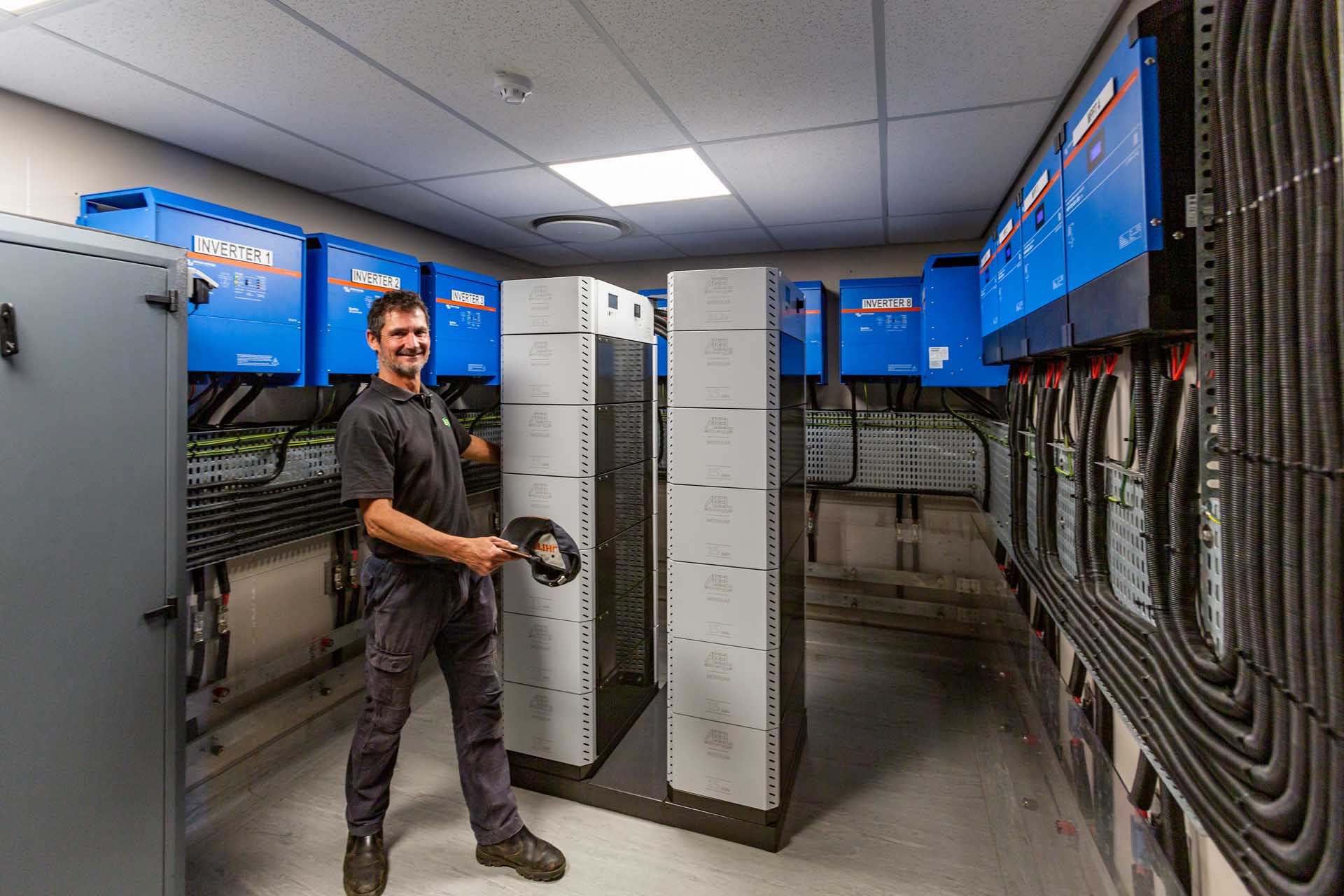

Batteries: 180 kWh (2 x 90 kWh) Storagdock LV-comms stackable LiFPO4 batteries

Solar Panels: 350 x 555w Jinko panels (194.25kWp)

Expected Break-Even: 6 years

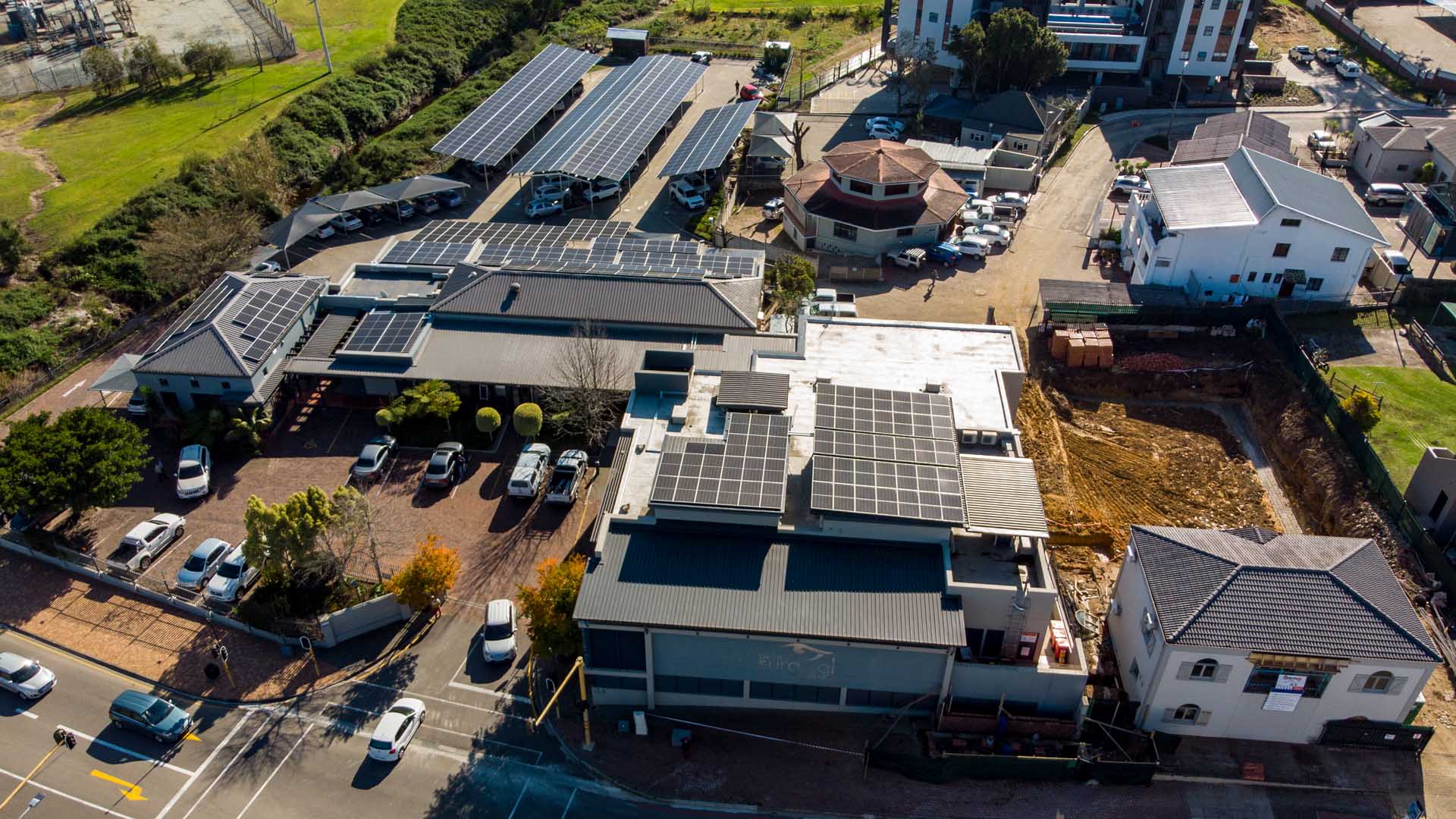

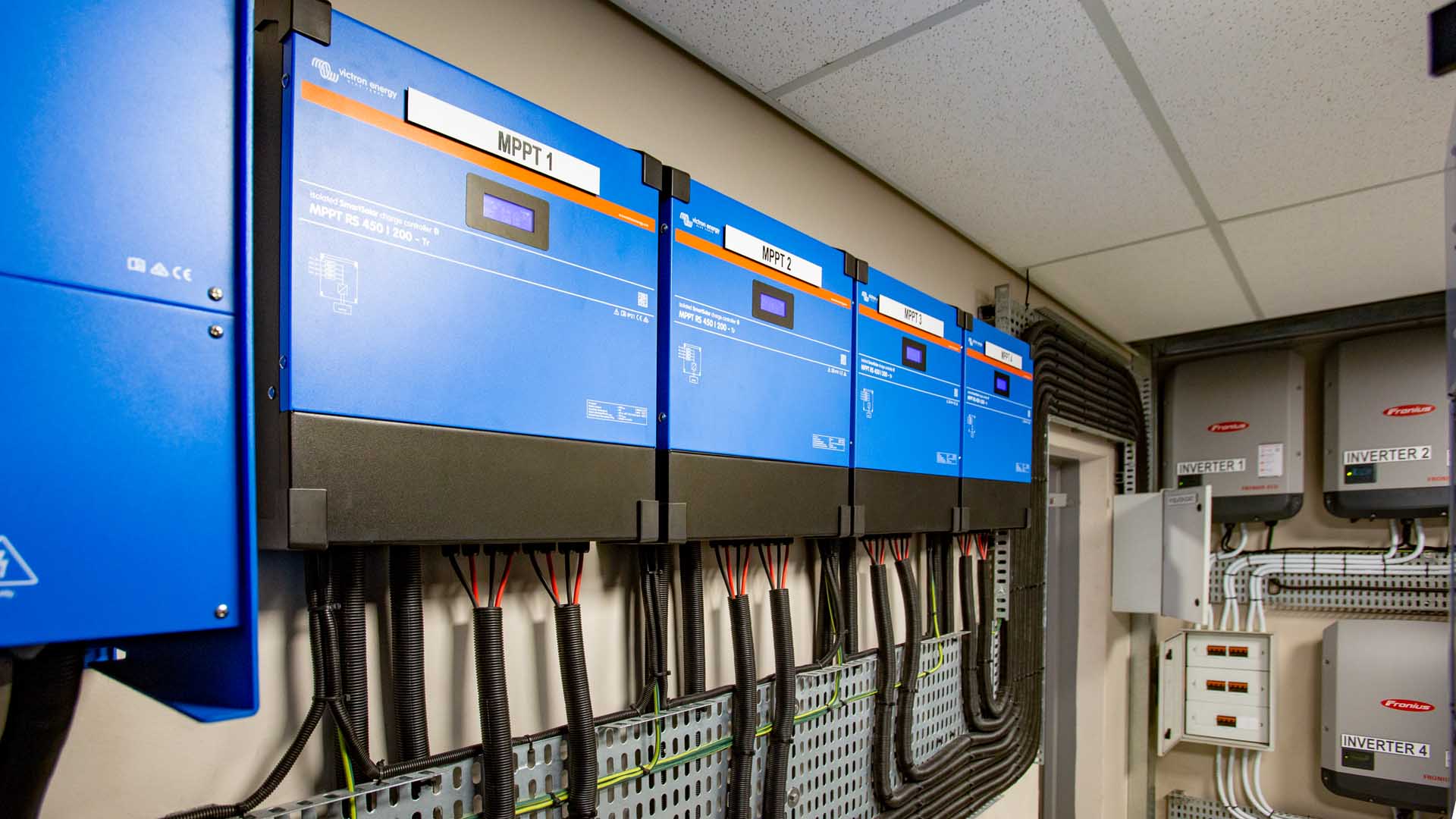

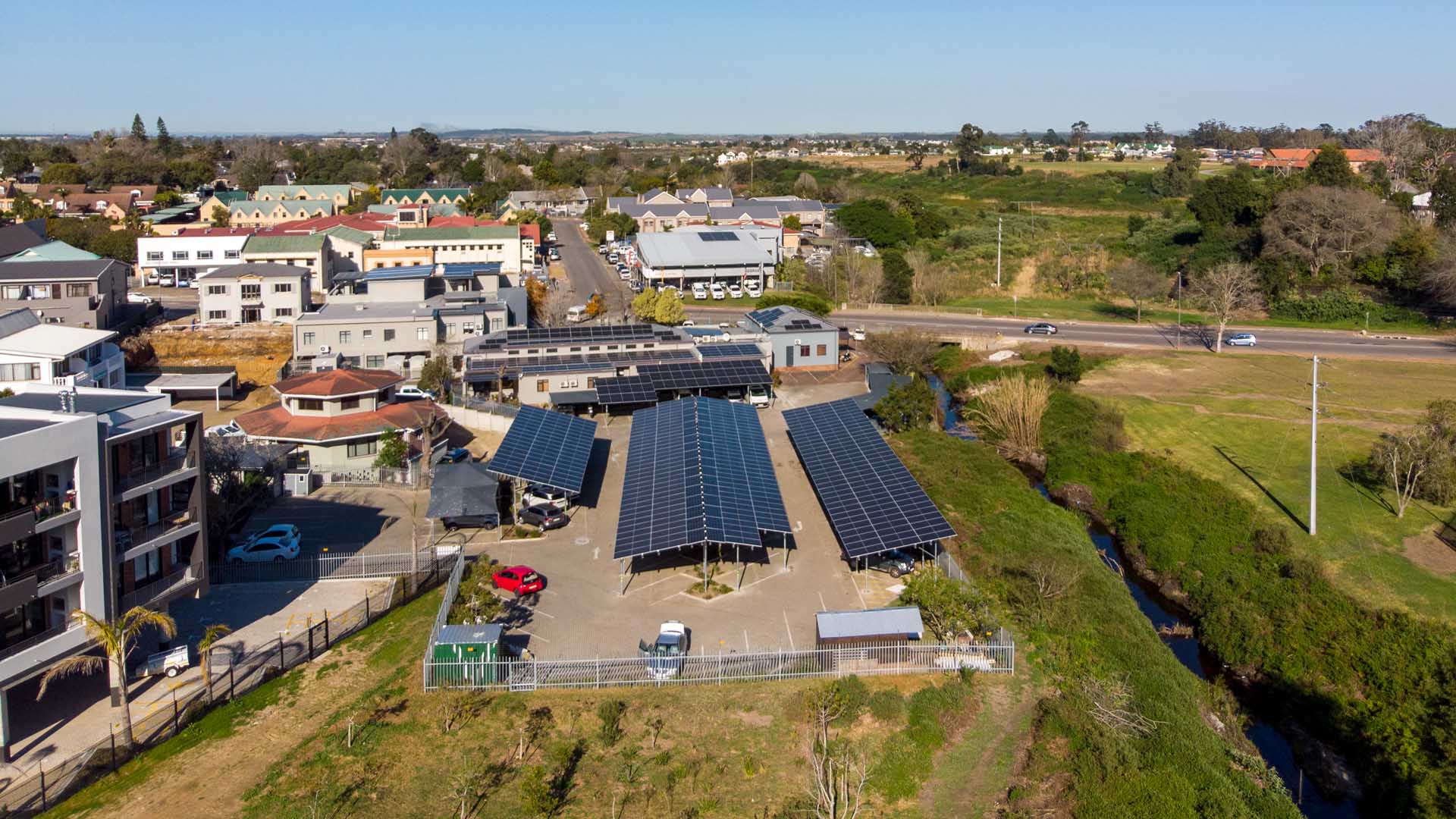

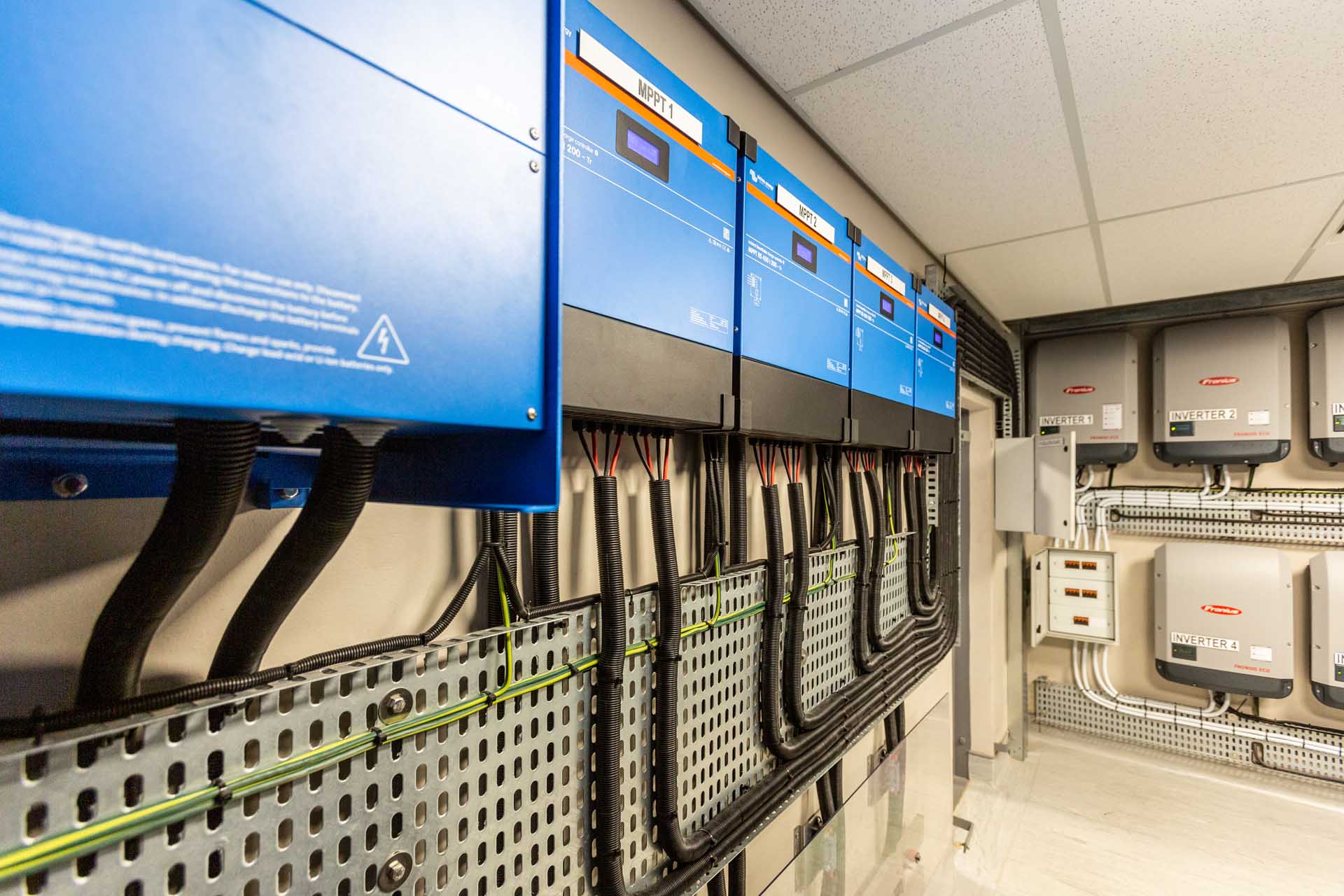

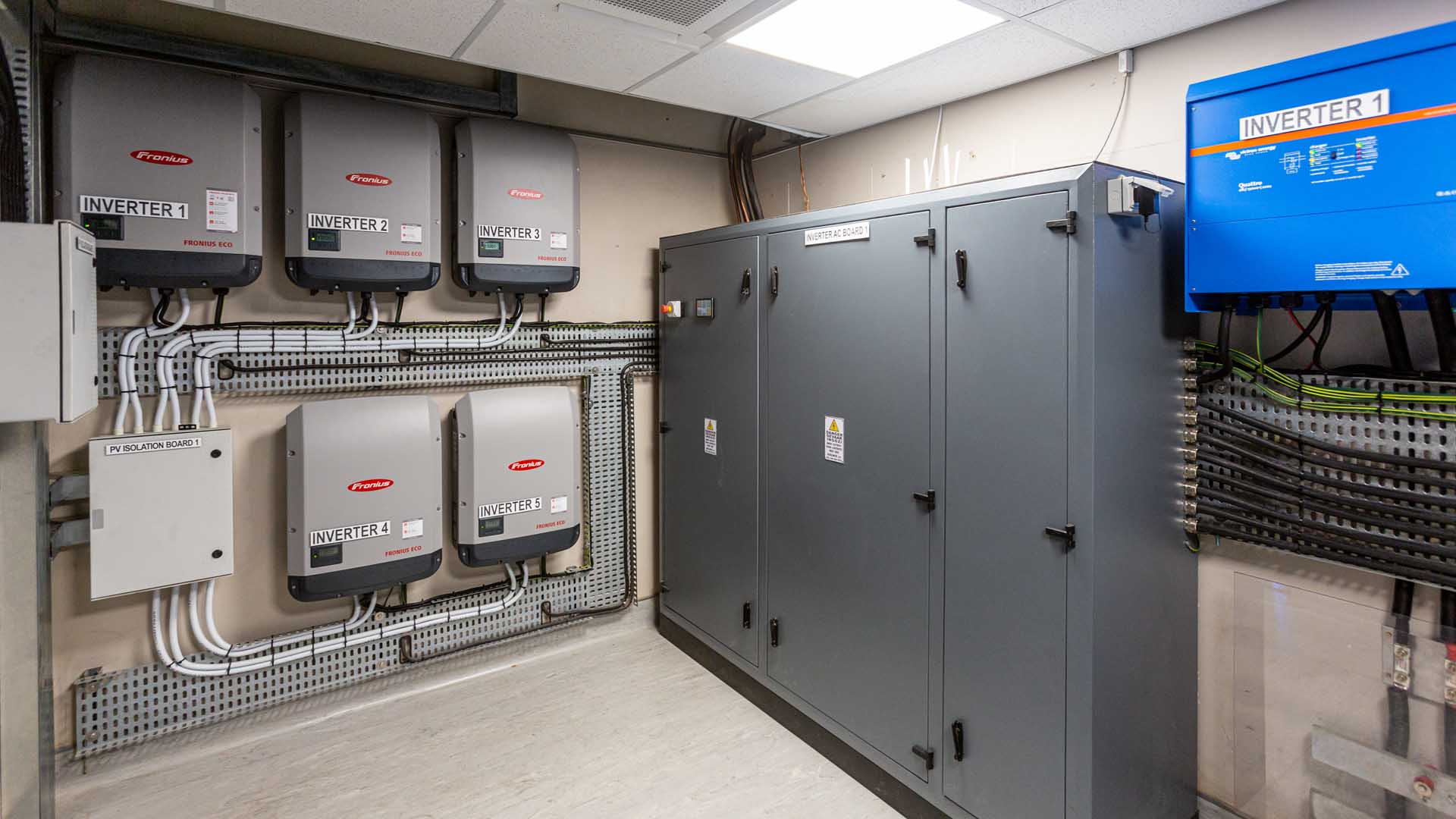

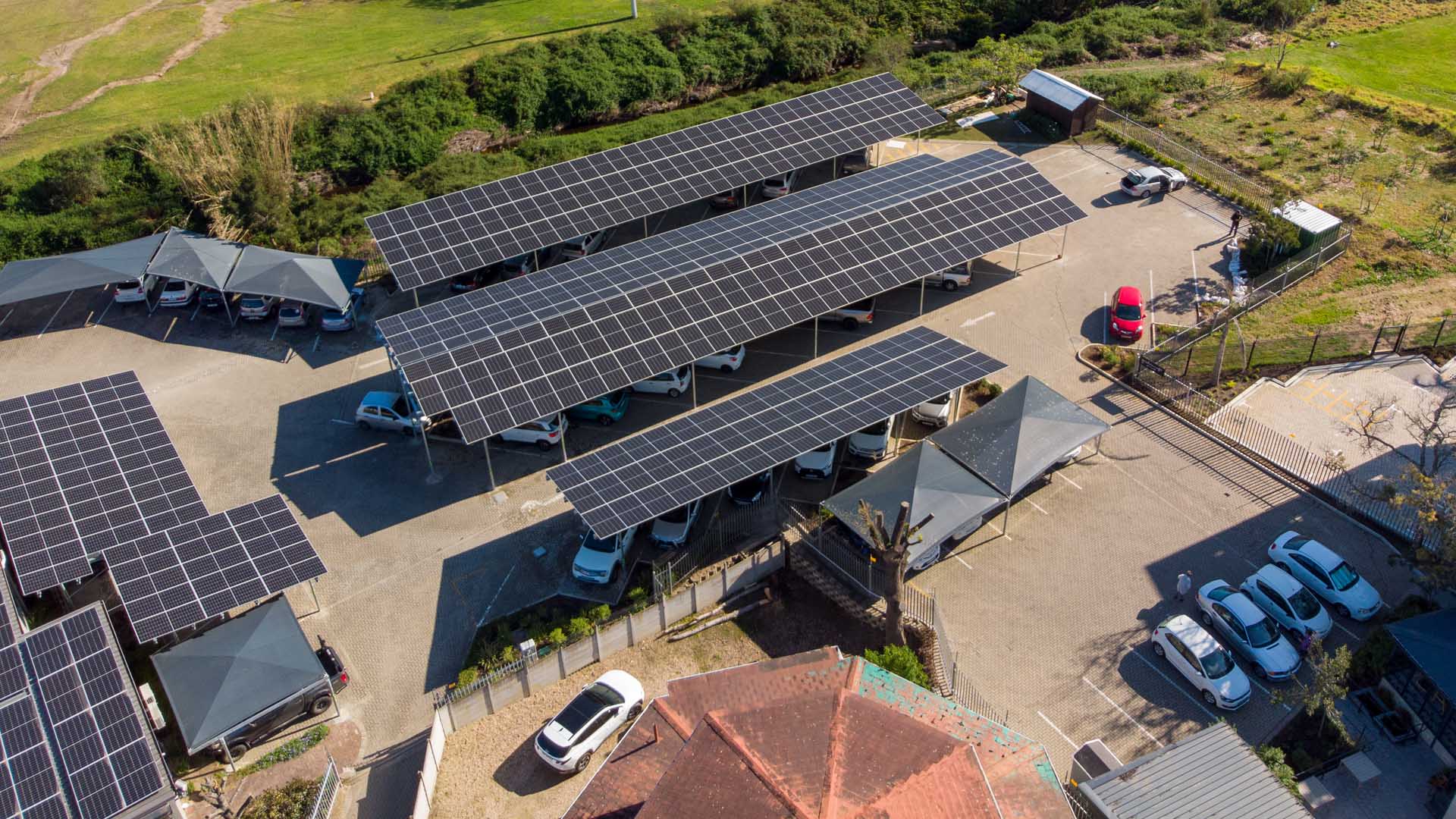

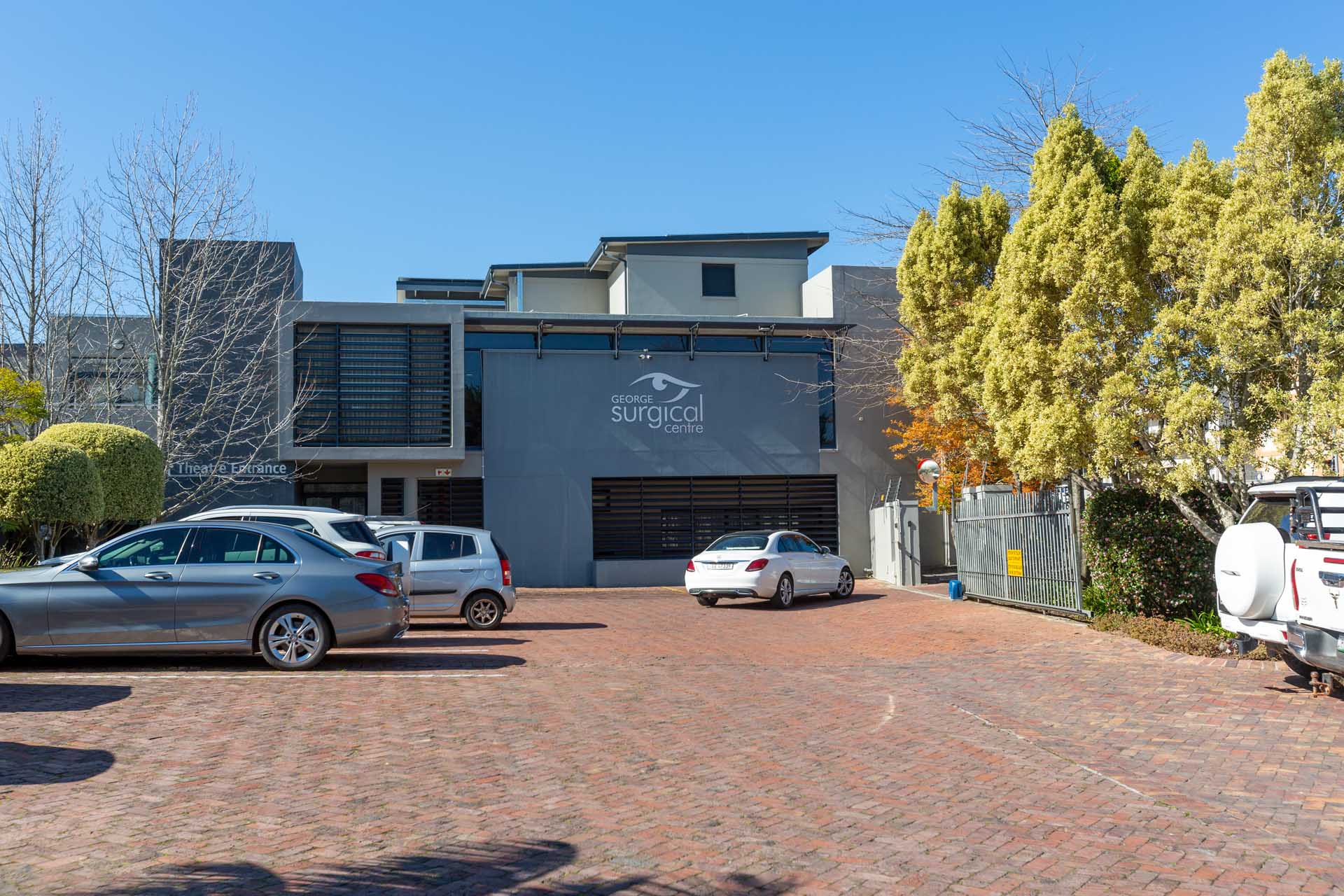

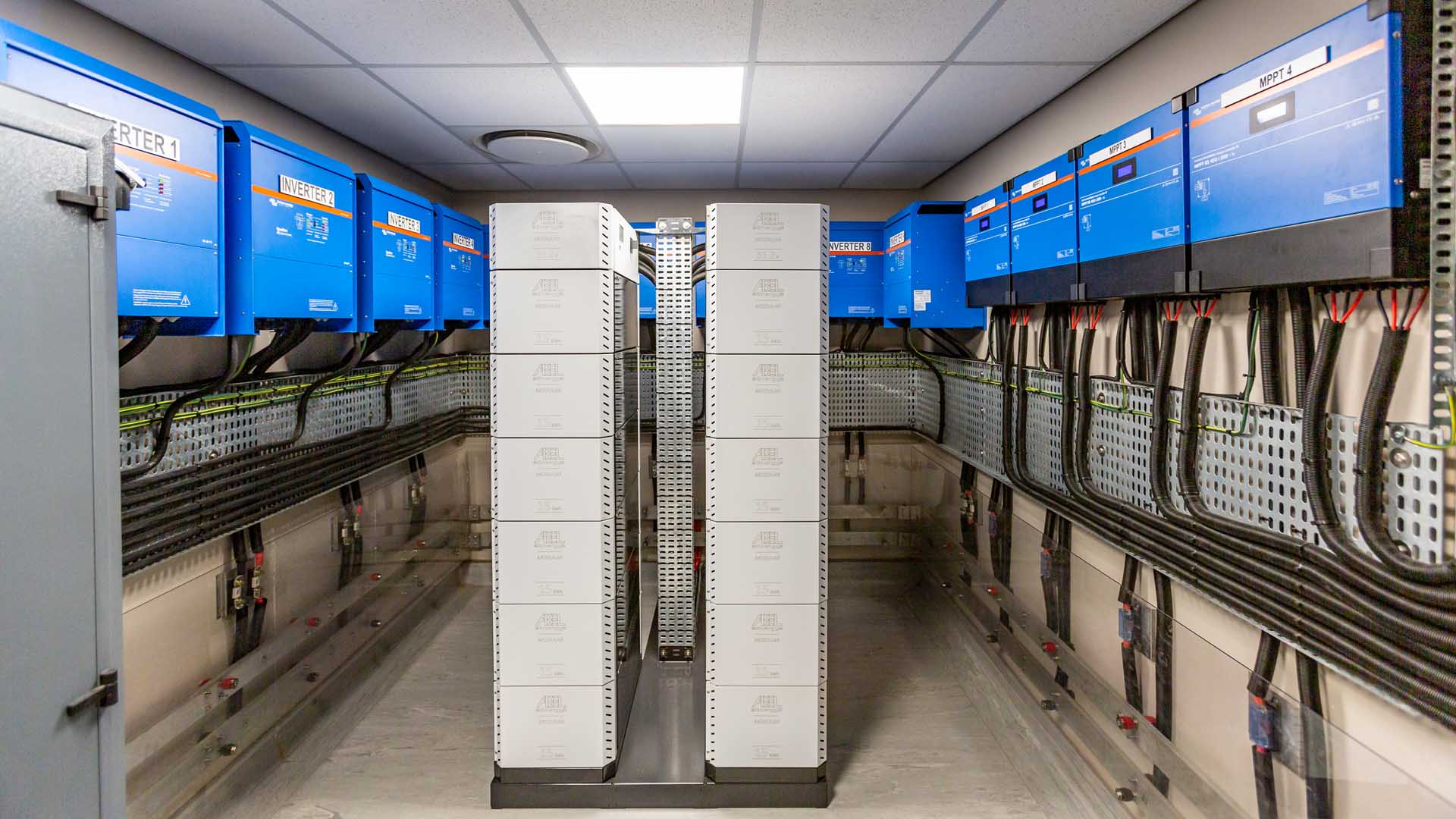

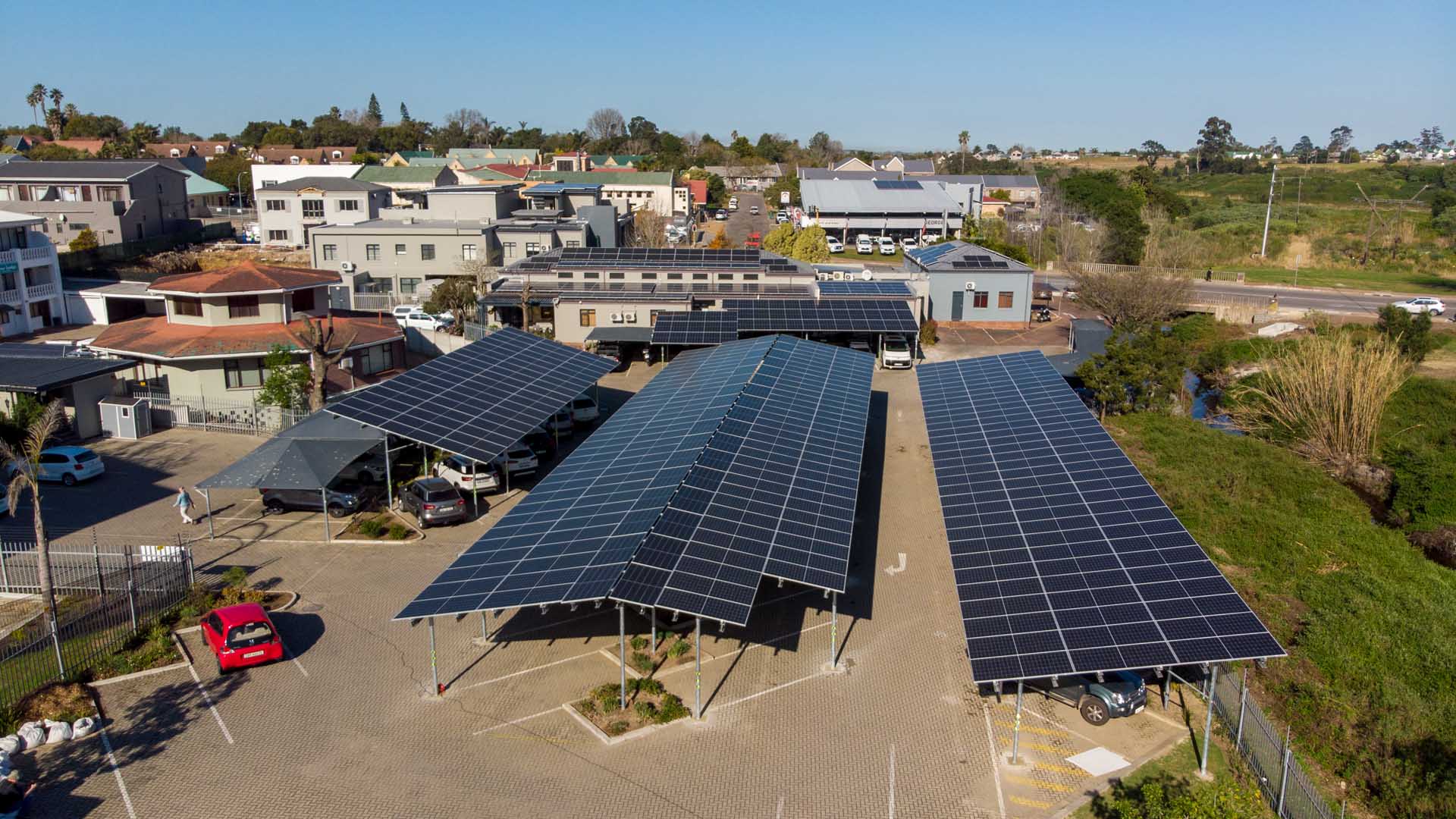

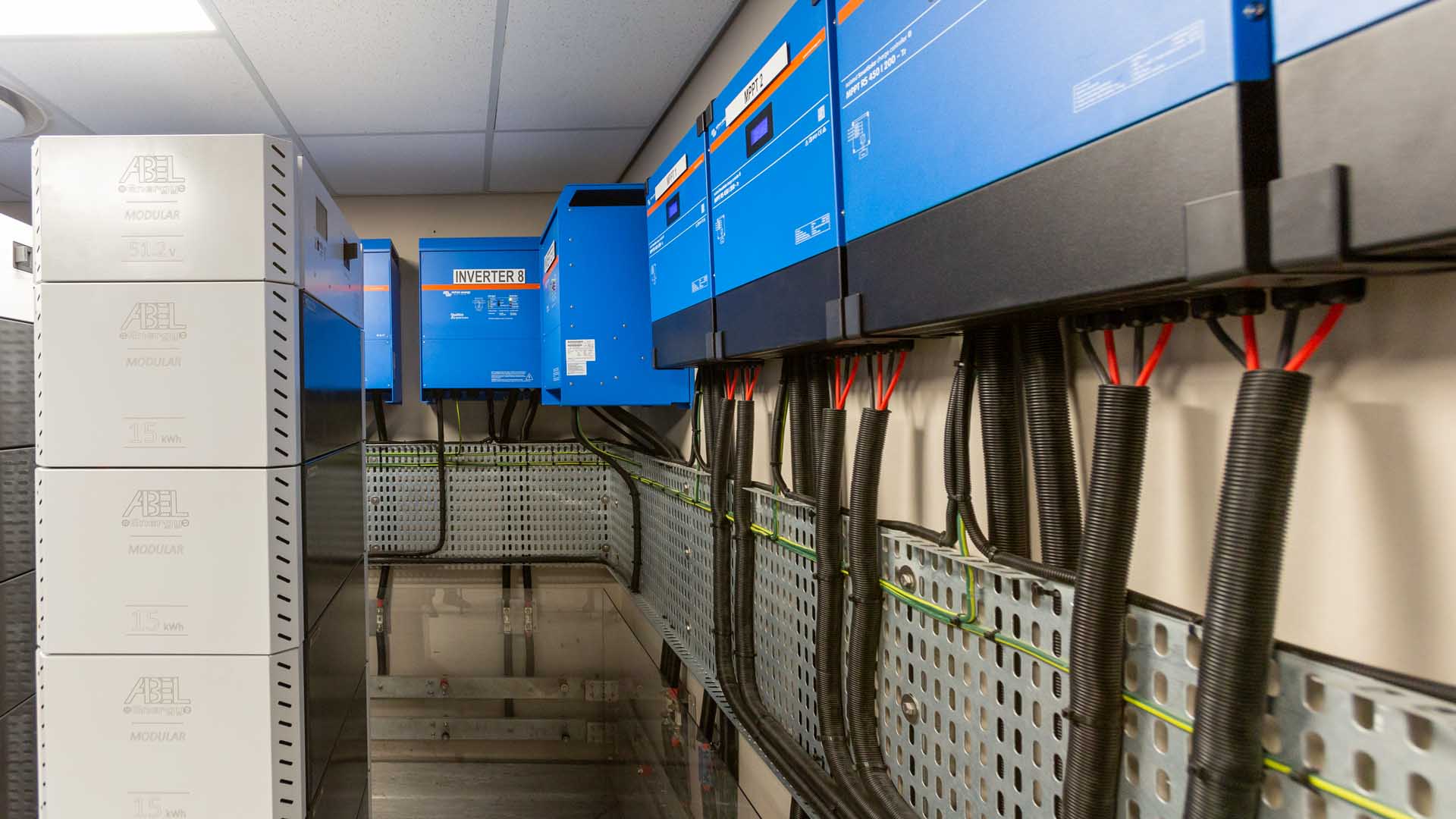

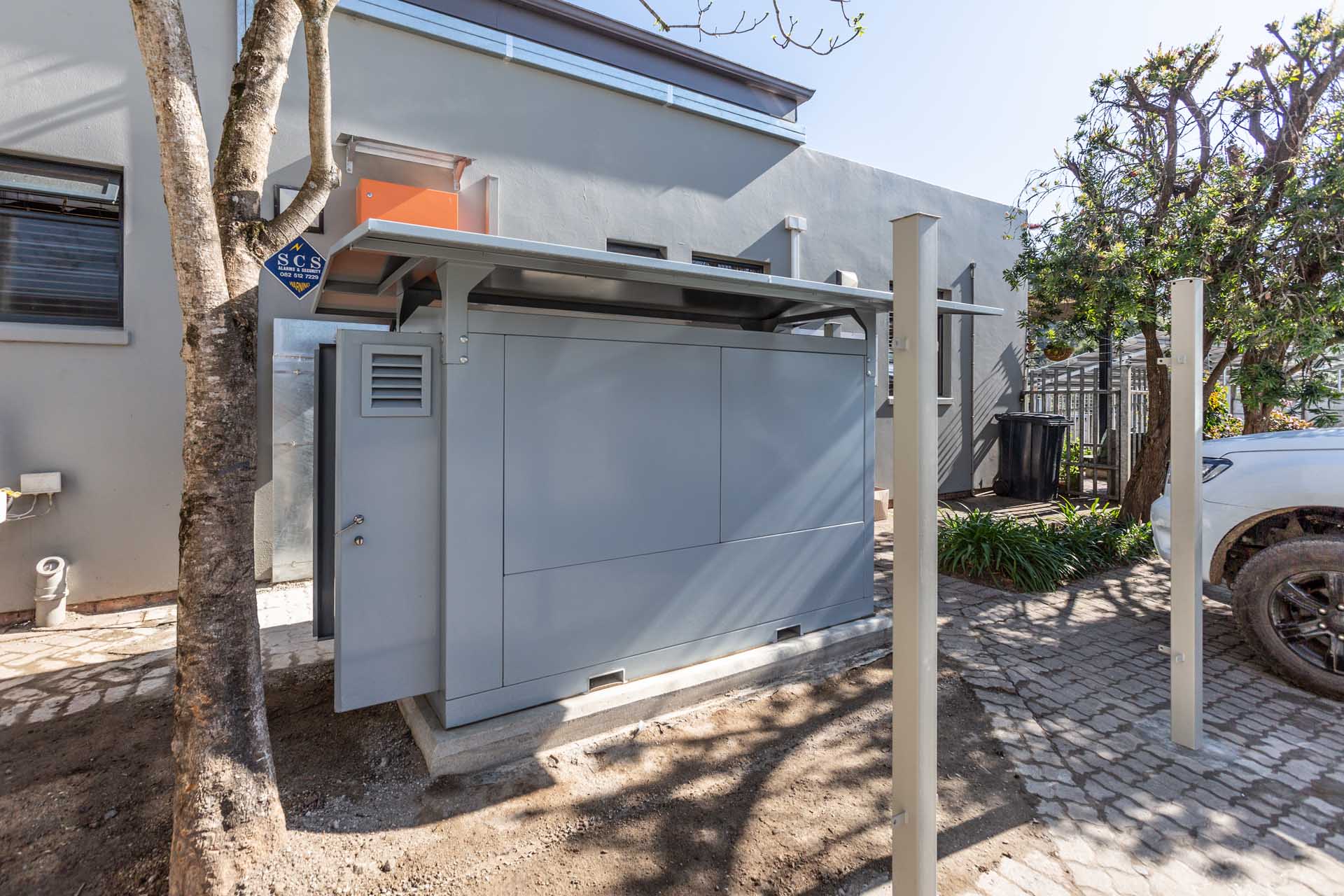

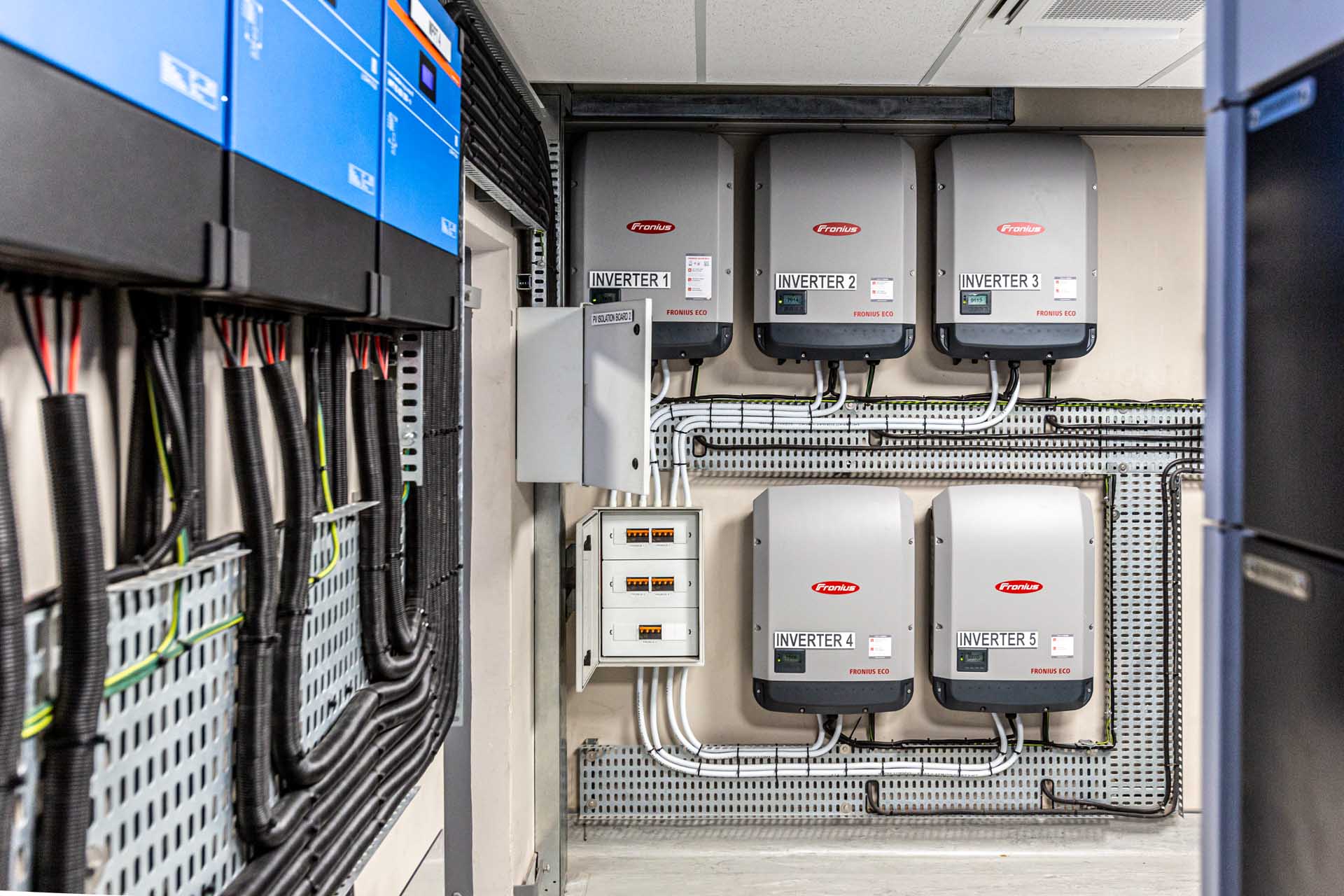

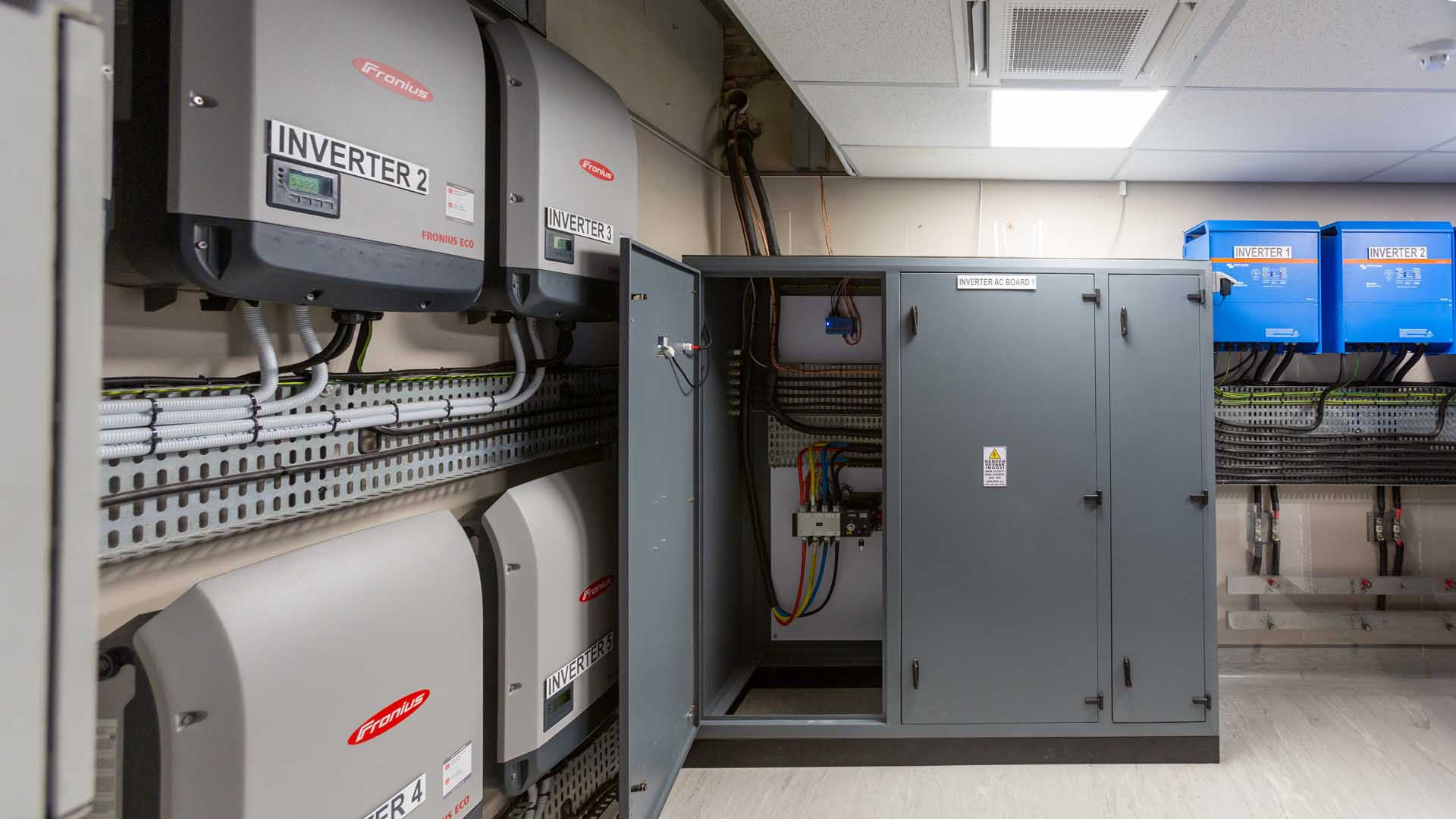

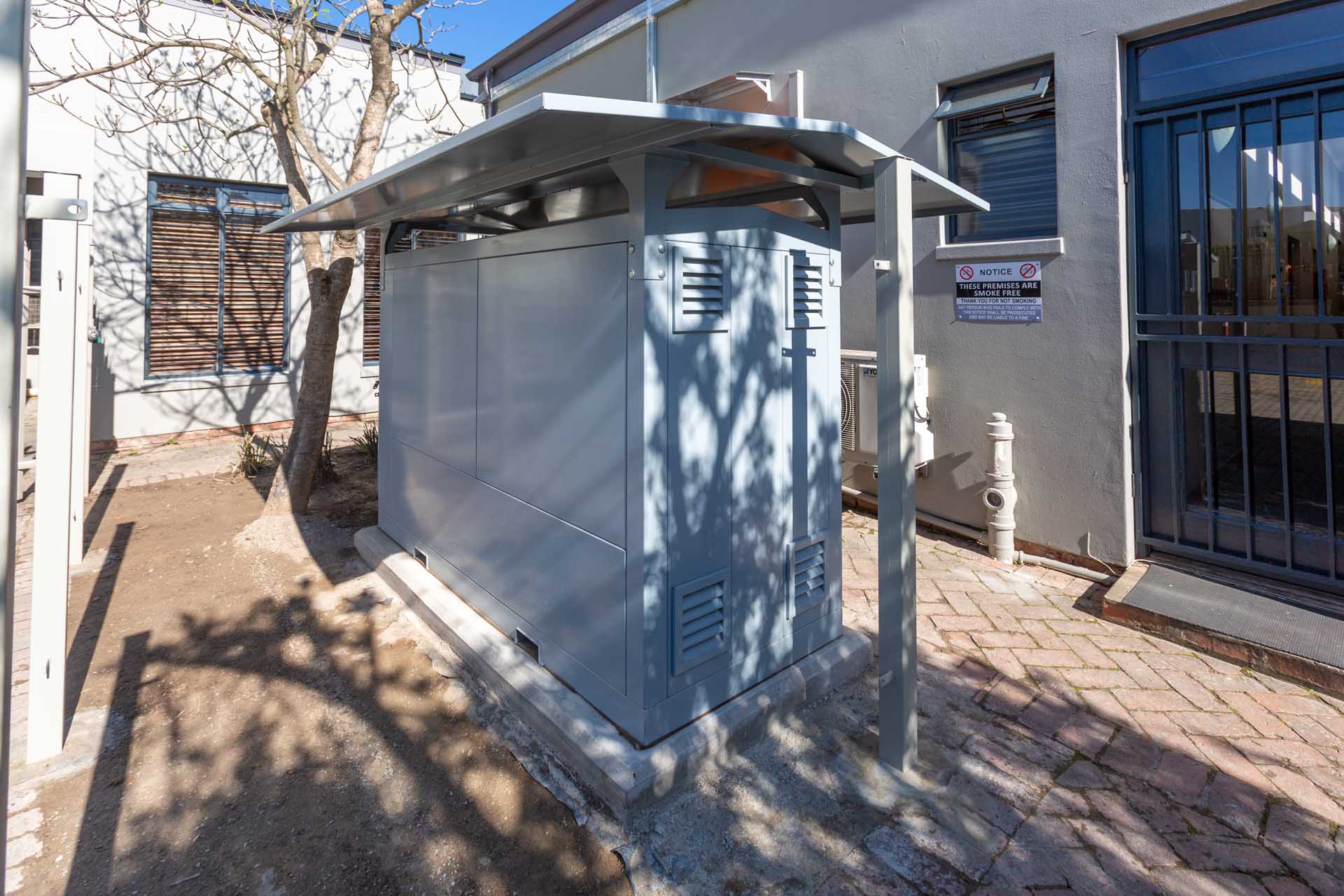

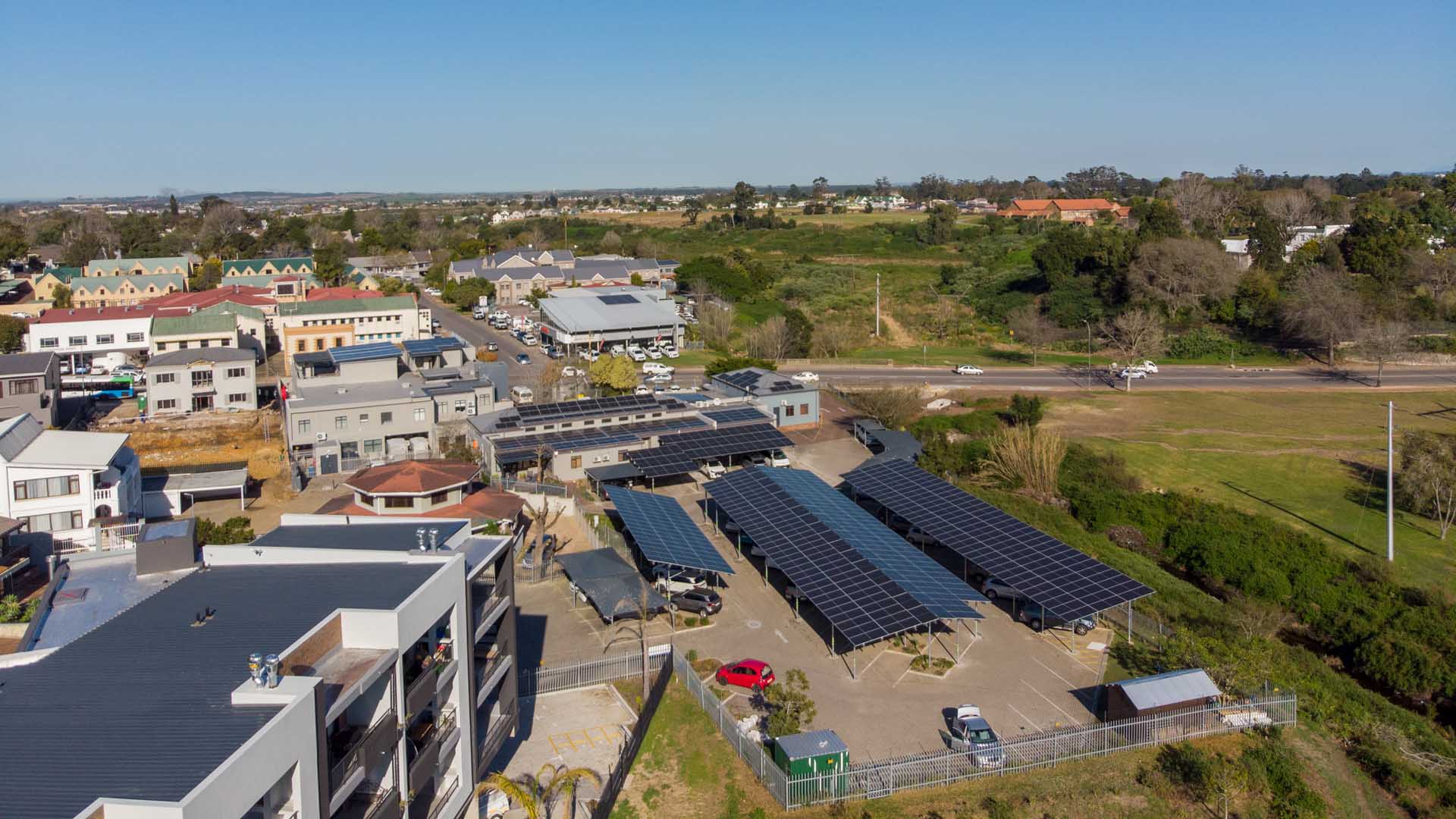

More images on the Garden Route Eye Clinic and George Surgical Centre

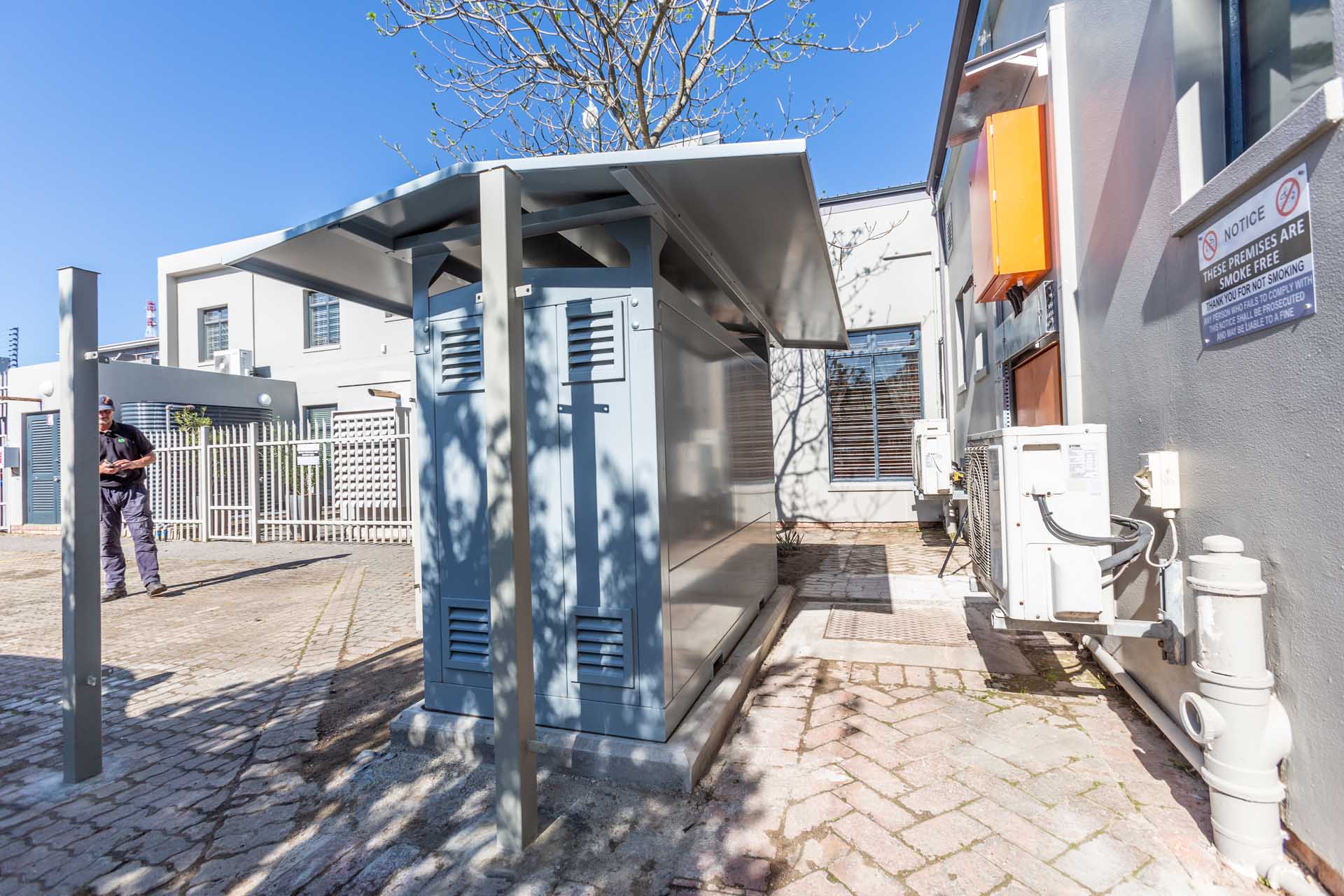

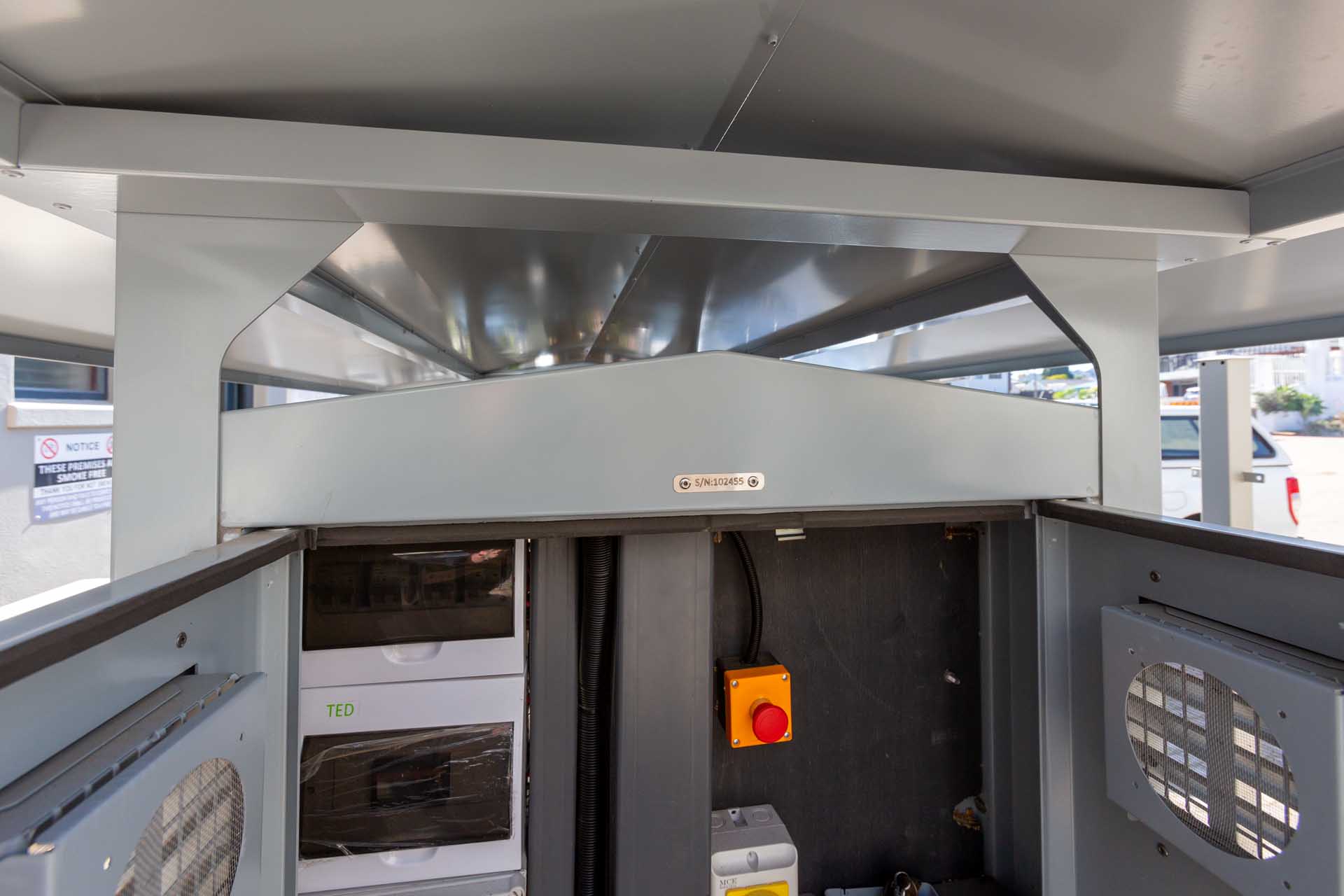

Energydock Energypod

The Energypod is a flexible solar-plus-battery system that provides reliable power for various applications, including commercial use. Built with durable steel, it’s customizable, scalable, and easy to manage. Available in different sizes and configurations, it’s ideal for off-grid, remote locations, and commercial use.

Experience the future of energy today, Energypod

Discover how Energydock can revolutionize your energy consumption. Contact our experts today

Commercial Solar Power Installation for the Inverroche Distillery in Still Bay

Inverroche Distillery’s Commercial Solar Power Installation: A Green Revolution in Still Bay

Written by Arno Menkveld on March 26, 2024. Posted in Agriculture & rural solar energy solutions, Commercial solar solutions.

In the scenic town of Still Bay in the Western Cape of South Africa, Inverroche Distillery faced a trio of challenges: energy insecurity, the high cost of running a diesel generator, and excessive energy consumption from the grid. Seeking a robust solution, they partnered with Specialized Solar Systems commercial team to implement a tailored commercial hybrid solar system.

The solar infrastructure comprises a Atess inverter and a roof-mounted solar panel array featuring a total of 240 kWp, strategically designed to alleviate the strain on the grid and mitigate the need for an expensive diesel generator. With 160 kWh of usable battery storage, the hybrid solar system not only ensures energy security during load shedding but also optimizes time-of-use (TOU) for efficient cost-effective energy consumption.

The powerful solar system includes 2 X 100kVA Atess (with only 1 currently powered for phase one), 240 kWp enersol solar panels (which only 120kWp is utilized in phase one), and 2 X 100/80 Freedom Won lithium iron phosphate batteries. This innovative configuration is projected to produce an annual average energy of 129.6 MWh (doubling when phase two is completed).

In terms of financial feasibility, the system boasts a payback period of 5.5 years, offering a prudent investment with a lifespan of 20 years and beyond. Beyond economics, the environmental impact is noteworthy, with an annual carbon dioxide savings of 93 tons, aligning Inverroche Distillery with sustainable and eco-friendly practices.

This solar initiative not only resolves immediate energy challenges but also positions Inverroche Distillery as a forward-thinking entity, contributing to both economic and environmental sustainability. The success of this project underscores the efficacy of solar solutions in addressing complex energy issues, setting a precedent for businesses in the Western Cape and beyond.

Project Client Name	Inverroche Distillery
Country and Province	South Africa, Western Cape
Location of the Project	Still Bay, WC
System Type	Hybrid Solar System
Inverter Type	100kVA HPS
Panel Mount position	Roof Mounting
Storage (usable) kWh	160
kWp	240kWp
Problems faced by Client	Energy insecurity, high cost of running a diesel generator, & high energy consumption from the grid
Solution Provided	A system that reduces energy consumption from the grid, reduces cost of running a diesel generator and provides energy security and power essential for load-shedding TOU optimization
System Metrics	2 X 100kVA Atess (only 1 powered), 450kWp enersol of which only 240Wp used, 2 x 100/80 FW
System Annual Average energy Production (MWh)	129.6
System Payback Period (Years)	5.5
System Life Span (Years)	20
Annual carbon dioxide savings (C02) (tons)	93.312

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

Contact us now (Tel: 044 878 1126, Mon to Thu 8AM–5PM and Fri 8AM–2PM) to explore tailored solar solutions for your business.
Dive into the future of energy efficiency and cost savings! View more information about our commercial section at this link.
Discover how solar innovation is transforming agriculture! View more information about our agriculture section at this link.
Witness the power of sun-driven success! Check out some of our recent solar-powered commercial projects at this link.

Take the first step towards a brighter, greener future with Specialized Solar Systems. Click the links above to explore, and let’s bring your sustainable vision to life!

Some more images of the installation:

Groot Zorg Fontein: A Green Energy Makeover in South Africa

Written by Arno Menkveld on February 21, 2024. Posted in Commercial solar solutions.

Groot Zorg Fontein, located in the Western Cape, South Africa, recently underwent a sustainable energy transformation. With a 57.2 kWp grid-tie system facing challenges, the project addressed client concerns and revamped its energy setup.

The client faced issues with an old generator and an inefficient grid-tie system lacking logging capacity.

To tackle this, our commercial team removed an outdated inverter, re-stringed the 57.2 kWp array, and integrated new components for improved efficiency.

The system now features a 45kVA Victron inverter, dual MPPTs, a 100/80 Freedom won battery, and a Fronius Eco 27kVA inverter.

The revamped system annually produces 87.67 MWh, contributing to sustainability goals. With a payback period of 5 years and a 20-year lifespan, it’s both economically and environmentally beneficial, saving 63 tons of CO2 a year.

Groot Zorg Fontein showcases the success of a simple and efficient green energy makeover, providing a reliable power source while contributing to a cleaner, greener South Africa.

Location	Western Cape
System type	Grid-tie system
Inverter type	Fronius
Panel mount position	IBR & Corrugated roof top covering 36m x 30m
kWp	57.2
Problems faced by Client	The client had an old generator, did have logging capacity, together with inadequacy of the existing grid-tie system
Solution provided	Removed larger Solis grid-tie inverter and re-string the 57.2 kWp array to suit inclusion of new & modern components
System description	45kVA Victron three Phase, MPPT’s (2×450/200), 100/80 Freedom Won battery, Fronius Eco 27kVA
System annual energy production (MWh)	87.670
System Payback Period (Years)	5.193
System lifespan (Years)	20
Annual Carbon dioxide (CO2) savings (tons)	63.122

Some images of the installation:

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

Contact us now (Tel: 044 878 1126, Mon to Thu 8AM–5PM and Fri 8AM–2PM) to explore tailored solar solutions for your business.
Dive into the future of energy efficiency and cost savings! View more information about our commercial section at this link.
Discover how solar innovation is transforming agriculture! View more information about our agriculture section at this link.
Witness the power of sun-driven success! Check out some of our recent solar-powered commercial projects at this link.

Take the first step towards a brighter, greener future with Specialized Solar Systems. Click the links above to explore, and let’s bring your sustainable vision to life!

Commercial solar installation at the Safari Ostrich Farm

Empowering Sustainability: Safari Ostrich Tourist Farm with their Hybrid Solar Solution

Written by Arno Menkveld on February 15, 2024. Posted in Agriculture & rural solar energy solutions, Commercial solar solutions.

In the heart of Oudtshoorn, South Africa, Safari Ostrich Farm is pioneering sustainable farming and tourism with its innovative hybrid solar powered system. Faced with unstable electricity from load shedding and high tariffs imposed by Eskom, the tourism farm sought a solution to improve operations and cut costs while making a positive impact on the environment.

Specialized Solar Systems’ commercial team has installed a state-of-the-art hybrid solar system at the Safari Ostrich Farm. The system features six Victron MultiPlus-II 10kVA inverters, two Fronius Eco 27kVA inverters, MPPT charge controllers, and a 100kWh FreedomWon lithium iron battery for energy storage. The solar array, comprising Canadian solar panels, is strategically positioned across 36m x 30m of IBR and corrugated rooftops, delivering an impressive total capacity of 85.8kWp.

Displaying a commercial hybrid solar powered system installation at the Safi Ostrich Farm in Oudthoorn

This forward-thinking upgrade not only addresses operational challenges but also provides substantial environmental benefits. With an annual average energy production of 129.4 MWh, the system saves a remarkable 93.168 tons of carbon dioxide emissions each year.

In this informative interview below, co-owner Mr. P. Zwarts of Safari Ostrich Farm, along with Ray Nolan from Specialized Solar Systems, discusses the powerful impact solar energy has had on their business one year after installation.

The Safari Ostrich Farm commercial hybrid solar system demonstrates a commitment to sustainability, offering a payback period of just 5.5 years and a lifespan of 20 years. This eco-friendly initiative not only secures the company’s energy needs but also contributes to a greener and more resilient future.

Project Name	Safari Ostrich Farm
Country	South Africa
Location	Oudtshoorn, WC
System type	Hybrid Solar System
Inverter type	Victron MultiPlus-II 6x10kVA Fronius Eco 2 X 27kVA
Panel mount position	IBR & Corrugated covering 36 m x 30 m
Storage	100/80 FW
kWp	85.8
Problems faced by Client	Unstable electricity supply due to loadshedding & high tariffs from Eskom utility
System description	AC/DC Coupled with Vicron Multiplus-II 10 kVA x 6 inverters, Fronius Eco 27kVA inverters, MPPT charge controller 150V (Victron Energy); FreedomWon 80kWh Usable storage, 85.8 kWp PV Modules Canadian Solar
System annual average energy production (MWh)	5.5
System lifespan (Years)	20
Annual Carbon dioxide (CO2) savings (tons)	93.168

Safari Ostrich Farm was opened to the public in 1956 by Derek Fisch and Harry Lipschitz with the goal of educating and entertaining guests about ostriches and farming practices. Today, this legacy is still carried on by both families as commercial ostrich farmers and as an attraction to the public.

Some more images of the installation:

A commercial hybrid solar powered system installation at the Safi Ostrich Farm in Oudthoorn

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

Contact us now (Tel: 044 878 1126, Mon to Thu 8AM–5PM and Fri 8AM–2PM) to explore tailored solar solutions for your business.
Dive into the future of energy efficiency and cost savings! View more information about our commercial section at this link.
Discover how solar innovation is transforming agriculture! View more information about our agriculture section at this link.
Witness the power of sun-driven success! Check out some of our recent solar-powered commercial projects at this link.

Take the first step towards a brighter, greener future with Specialized Solar Systems. Click the links above to explore, and let’s bring your sustainable vision to life!

Hybrid Solar Power at HoogeKraal Boedery: A 121 kWp Success for the dairy farm

Written by Arno Menkveld on February 13, 2024. Posted in Agriculture & rural solar energy solutions, Commercial solar solutions.

Nestled in South Africa’s Western Cape, HoogeKraal Boedery, a thriving dairy farm, grappled with power shortages and soaring energy costs.

Seeking a solution, they partnered with Specialized Solar Systems commercial team and implemented a hybrid solar system, featuring a commercial hybrid solar system with a 100 kVA HPS Attess inverter, 2,427.8 square meters of ground-mounted Canadian solar panels with a solar array of 122.85 kWp, and 80 units of available storage capacity.

This innovative energy landscape ensures not just power but also reliability, affordability, and sustainability for the farm’s vital operations.

Project Name	HoogeKraal Boedery
Country and Province	South Africa, Western Cape
Location	Hoekwil, WC
System Type	Hybrid system
Inverter Type	100 kVA HPS Attess
kWp	122.85
Storage (kWh)	80
Panel Mount Position	Ground Mount 2: 427.8 Square metres
Problems faced by Client	Power shortages & cost-related issues, while their dairy farming business value proposition requires constant, reliable and affordable power supply
Solution Provided	Specialized Solar Systems proposed 121 kWp Hybrid system System metrics: Module DC 122.9kW kW and Inverter AC 100 kW
System Description	100kVA Atess 120KWP 100/80 FW Canadian Solar, CS3W-455MS (1000V) (2022) (455W) 270 (122.9kW)
System average annual energy production (MWh)	206.9
System Payback Period	5.45
System Life span (Years)	20
Annual Carbon dioxide Savings (tons)	148.968

Some more images of the installation:

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

Contact us now (Tel: 044 878 1126, Mon to Thu 8AM–5PM and Fri 8AM–2PM) to explore tailored solar solutions for your business.
Dive into the future of energy efficiency and cost savings! View more information about our commercial section at this link.
Discover how solar innovation is transforming agriculture! View more information about our agriculture section at this link.
Witness the power of sun-driven success! Check out some of our recent solar-powered commercial projects at this link.

Take the first step towards a brighter, greener future with Specialized Solar Systems. Click the links above to explore, and let’s bring your sustainable vision to life!

164.3 kWp Grid-Tied solar system at Garden Route Game Lodge

Update on Our 164.3 kWp Grid-Tied Commercial Solution at Garden Route Game Lodge.

Written by Arno Menkveld on February 12, 2024. Posted in Agriculture & rural solar energy solutions, Commercial solar solutions.

Garden Route Game Lodge embarked on a mission to embrace sustainability without compromising on quality or comfort.

The current installation is an impressive commercial grid-tied system featuring a 163.8 kWp solar array with 135 kVA inverters. There’s potential for adding battery storage in Phase 2. This system is projecting a substantial reduction of 3,402.72 tons of CO2 emissions over its expected lifespan of two decades!

Genevafontein chooses sustainable power solutions

Written by Arno Menkveld on November 16, 2023. Posted in Commercial solar solutions.

Genevafontein Retirement Village is located in the attractive suburb of Denver Park, George, in the Western Cape. The Village is situated on a north facing slope with outstanding views of the Outeniqua Mountains. It is a well established and beautifully maintained garden village, consisting of 91 units, a Community Centre and a Frail Care facility.

Gen evafontein Retirement Village faced the formidable challenge of tackling energy-related issues, similar to a previous installation (Generator vs Solar: Tuiniqua’s Smart Shift Towards Sustainable Power) where they grappled with the high costs associated with diesel generators. Their frail care unit and daily operations were vulnerable to power disruptions and escalating electricity expenses. Genevafontein sought an alternative that would ensure uninterrupted power for their crucial operations, notably for their frail care unit.

Enter the Specialized Solar Systems commercial division and I Grene Solutions with an innovative design and installation. The design includes an AC-DC-coupled commercial solar system offering a multi-faceted sustainable power solution that directly addresses Genevafontein’s energy concerns.

This system is projecting a substantial reduction of 6.74 tons of CO2 emissions annually.

The Genevafontein commercial hybrid solar power system consists of the following components:

System Design and Installation: Specialized Solar Systems in collaboration with I Grene Solutions.

Inverter (kVA): The system is equipped with 45 kVA Victron Quattro hybrid inverters from Victron Energy for seamless power supply and a 27 kVA grid-tie Fronius inverter for efficiency.
PV Array (kWp): A robust 38.8 kWp PV array, consisting of 72 high-performance 540 W PV solar panels, generates substantial clean energy.
Average Solar Yield Expectancy (kWh): With an impressive annual yield of 62.66 MWh, equivalent to 171.6 kWh per day, the system ensures a consistent energy supply.
Storage (kWh): A 60 kWh Freedom Won lithium battery offers reliable energy storage, effectively bridging the gap between energy generation and consumption.
Solar Charge Controller (MPPT): The setup features a single 450/200 SmartSolar MPPT charge controller, ensuring optimal solar power utilization with advanced MPPT technology for efficient energy harvesting.
Lifespan: The PV solar panels are designed to operate at 80% efficiency for 25 years, while the lithium battery is expected to last over 16 years, surviving more than 5,500 charge cycles at an 80% depth of discharge.
Expected System Break Even (Capitalization): Genevafontein can expect to recover their initial investment in the system within 7-8 years, emphasizing the long-term financial benefits.

The result? Genevafontein now enjoys a dependable solar power and storage solution for their frail care unit and daily operations. This innovative solar system not only provides substantial energy cost savings but also enhances energy security, ensuring that power disruptions (loadshedding) are no longer a concern. Furthermore, it reduces their energy dependency on traditional sources, aligning with their sustainability goals and securing a bright and reliable energy future for Genevafontein. Their commitment to sustainable power solutions is evident in the transformative impact of their innovative solar system.

If you’re considering going solar, don’t hesitate to reach out to us for a personalized solution tailored to your needs.

The Specialized Solar Systems team of renewable energy experts is always ready to offer guidance and support to those interested in transitioning to solar energy. If you’re looking to reduce your environmental impact and cut down on energy bills, feel free to reach out to us today.

For a customized energy system quote, please complete this form link.
For solar power expert consultant assistance, please contact us at +27 (0)44 878 1126.
Visit our modern solar power and battery Garden Route showroom in George at the following location.
View some of our latest projects in our news feed or watch a video on some of our recent projects at this link.
View more about our commercial solar power solutions at this link

Solar array (PV) in George, 38.8kWp array, consisting of 72 high-efficiency 540W PV panels.

The Genevafontein system is an AC-DC-coupled commercial solar power system

View our products at our Online Solar Shop!

Explore Tuiniqua Care Centre's triumph in the generator vs solar challenge, ultimately choosing solar for superior energy solutions.

Generator vs Solar: Tuiniqua’s Smart Shift Towards Sustainable Power

Written by Arno Menkveld on November 10, 2023. Posted in Commercial solar solutions.

Tuiniqua Care Centre has been serving the elderly in George for over 30 years, offering affordable housing and care. Since its start in 1984, it’s been a non-profit, ensuring accessibility for all. Over the years, Tuiniqua has expanded and become an integral part of the George community.

Tuiniqua faces challenges related to energy costs, energy security, and energy dependency. These issues affect their day-to-day operations and, more critically, their frail care unit’s reliability. They resolved this by using a diesel generator, but the increasing costs of fuel and maintenance were very high, amounting to a significant financial burden. Additionally, load shedding was also a problem, further complicating their power supply challenges and escalating fuel costs.

They approached Specialized Solar Systems’ commercial division to compare the advantages of generators vs solar and determine if there was a solution that would be cost-effective for these issues.

The team at Specialized Solar Systems conducted a comprehensive analysis of the energy profile of Tuinqua Old Age Home, ensuring alignment with the care center’s financial objectives. They meticulously assessed the current energy consumption needs, considering the sun radiation factor specific to the George area, and took into account relevant municipal regulations.

They delivered a bespoke commercial hybrid solar power solution that not only met but exceeded the essential energy requirements of Tuinqua Old Age Home.

Tuiniqua’s hybrid solar power system consists of the following components:

System Type: The Tuiniqua system is an AC-DC-coupled commercial solar power system, combining the benefits of both couplings to meet the specific energy requirements of the facility.
Inverter (kVA): The system utilizes 90 kVA hybrid inverters, made up of 6 x 15 kVA Victron Energy Quattro’s and a 27 kVA grid-tied Fronius Eco inverter, ensuring a reliable power supply.
PV Array (kWp): The solar system features a 56.16kWp array, consisting of 104 high-efficiency 540W PV panels. This substantial capacity harnesses the energy from the sun effectively.
Average Solar Yield Expectancy (kW): The system is expected to generate an average of 89.87 MWh of electricity per year, equivalent to 246.2 kWh per day. This robust solar yield ensures a consistent energy supply.
Storage (kWh): To store excess energy and provide backup power, a 100 kWh, with 80 kWh being usable, Freedom Won lithium (LiFePO4) battery has been integrated into the system. This battery offers reliability and an expected lifespan of over 16 years, with more than 5,500 cycles at 80% Depth of Discharge (DoD).
Solar Charge Controllers (MPPT): The configuration includes two 450/200 SmartSolar MPPT charge controllers and one 450/100 SmartSolar MPPT charge controller. These controllers maximize solar energy extraction, employing advanced MPPT technology for enhanced efficiency.
PV Solar Panels and Battery Lifespan: The PV solar panels come with a 25-year warranty, ensuring longevity and sustained performance. The battery’s expected life of over 16 years further secures the system’s reliability.
Expected System Break Even (Capitalization): Tuiniqua can anticipate a system capitalization break-even within 7-8 years.
Location: Tuiniqua Old Age Home is located in George, a region with abundant sunshine, making it an ideal location for a solar power solution.

Specialized Solar Systems is actively monitoring and optimizing the system as part of the installation package for the first year. This ongoing attention ensures that the solar system maintains peak performance, providing sustainable benefits for years to come.

The installation of this system has equipped Tuiniqua with a reliable backup solution for their frail care unit and day-to-day operations. It effectively addresses concerns about energy costs, enhances energy security, and reduces dependency on conventional power sources. This transition establishes solar as the clear victor in the generator vs. solar debate, ultimately ensuring the seamless functioning of their facility.

In conclusion, the Tuiniqua solar power system, meticulously designed and installed by Specialized Solar Systems, successfully addressed the client’s energy-related challenges.

If you’re considering going solar, don’t hesitate to reach out to us for a personalized solution tailored to your needs.

For a customized energy system quote, please complete this form link.
For consultant assistance, please contact us at +27 (0)44 878 1126.
Visit our showroom at the following location.
View some of our latest projects in our news feed or watch a video on some of our recent projects at this link.
View more about our commercial solutions at this link

Solar array (PV) in George, 6.16kWp array, consisting of 104 high-efficiency 540W PV panels.

Energy storage: 100 kWh, with 80 kWh being usable, Freedom Won lithium (LiFePO4) battery has been integrated into the system.

With over a decade of experience pioneering energy solutions, Specialized Solar Systems is committed to delivering cutting-edge solar energy generation and storage solutions that cater to both commercial and residential energy needs.

Our extensive range of offerings includes tailor-made energy solutions, compact energy products, and remotely managed billable energy distribution. At Specialized Solar Systems, we acknowledge the crucial role of energy in today’s world and are devoted to providing sustainable and reliable energy solutions tailored to the unique requirements of our clients.

Plan your move to energy liberation today.

Take the first step by completing
our solar energy form below

Name *
First
Last
Email *
Contact Number *
(Above) Daytime contact number (mobile number preferred).
City or town or nearest to the intended installation? *
(Above) Location that you intend to use the solar system for radiation factor.
Country
Type of property *
Residential / Domestic
Commercial
Rural / Agricultural
Type of energy system? *
(Above) Choose the energy system that you are thinking of installing
Solar panel mounting location? *
(Above) Where will your solar panels be installed? If 'Other' please elaborate in 'Additional comments'
kWh used in a 24-hour period*?
*(Above) Enter the maximum kWh or units from your electricity meter consumed/required over a full day
kWh used in the evening from 5PM-7AM* ?
(Above) Enter the typical kWh or units from your electricity meter consumed/needed from 5PM to 7AM
Any additional comments?

Project client Name	Garden Route Game Lodge
Country and Province	South Africa, Western Cape
Location of the Project	Albertinia, WC
System Type	Grid-tie system
Inverter type	ECO 27.0-3-S (Fronius) 5 (135.0 kW)
kWp	164.3
Panel mount position	Ground-mounted energy system
Problems faced by client	power-related issues stemming from high Eskom tariffs, load-shedding disruptions, and the need to support the sustainability era
Solution Provided by SSS	Designing and Installation of a Grid-Tie System to Cut Energy Costs, Ensure Energy Sustainability, and Secure Energy. We also included generator integration to develop a blend of mains energy, solar energy, and diesel energy
System metrics	Module: DC 164.3 kW ; Inverter: AC 135 KW
System average annual energy production (MWh)	236.3
System payback period (Years)	4.39
System lifespan (Years)	20
Annual Carbon dioxide (CO2) savings (tons)	170.136

Tag: commercial solar

Solar Solution System Overview

Financial and Environmental Impact

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

Biotek Industrial Park in George faced soaring energy costs and heavy grid reliance. Specialized Solar Systems Commercial team came up with a grid-tie solar solution.

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

Commercial Solar Power Solutions: Securing Energy Independence for Garden Route Eye Clinic and George Surgical Centre

Phase 1: Solar Installations

System 1: Garden Route Eye Clinic

System 2: George Surgical Center

Energydock Energypod

Experience the future of energy today, Energypod

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

Groot Zorg Fontein, located in the Western Cape, South Africa, recently underwent a sustainable energy transformation. With a 57.2 kWp grid-tie system facing challenges, the project addressed client concerns and revamped its energy setup.

The client faced issues with an old generator and an inefficient grid-tie system lacking logging capacity.

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

Nestled in South Africa’s Western Cape, HoogeKraal Boedery, a thriving dairy farm, grappled with power shortages and soaring energy costs.

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

Garden Route Game Lodge embarked on a mission to embrace sustainability without compromising on quality or comfort.

Read more about this grid-tied solar power system here

Get ready to supercharge your sustainability journey! Explore the exciting world of commercial solar solutions with Specialized Solar Systems:

The Genevafontein commercial hybrid solar power system consists of the following components:

If you’re considering going solar, don’t hesitate to reach out to us for a personalized solution tailored to your needs.

View our products at our Online Solar Shop!

Tuiniqua Care Centre has been serving the elderly in George for over 30 years, offering affordable housing and care. Since its start in 1984, it’s been a non-profit, ensuring accessibility for all. Over the years, Tuiniqua has expanded and become an integral part of the George community.

If you’re considering going solar, don’t hesitate to reach out to us for a personalized solution tailored to your needs.
