Code (SKU):
BB03
Square-Build-a-Board-01-5kVA-48V-Backboard
Build a Board
Energydock Range

Build-a-Board 01: 5kVA/48V Backboard

Build-a-Board 01: 5kVA/48V Backboard

The Build-a-Board system comes with pre-installed components like Victron’s Multiplus II inverter/charger and Cerbo GX device, simplifying installation and enabling future expansion.

R29,756.54 incl VAT

> Enquiry Form

img-mail
Enquiry form for single product page
> Become a Reseller

Are you interested in being part of our Business to Business Program? Complete this application form and we will get back to you.

PRODUCT INFORMATION

Weight

58 kg

Dimensions

1000 × 200 × 1200 mm

Inverter

5 kVA low-frequency Victron Multiplus II inverter/charger

Includes

AC distribution box and a single phase DC connection/protection York box Victron Cerbo GX device with a colour touch screen Long range wifi antenna – allowing for remote management and monitoring of the system

Installation

Indoor / Protected under cover use

DESCRIPTION

Build-a-Board 01: 5kVA/48V Backboard

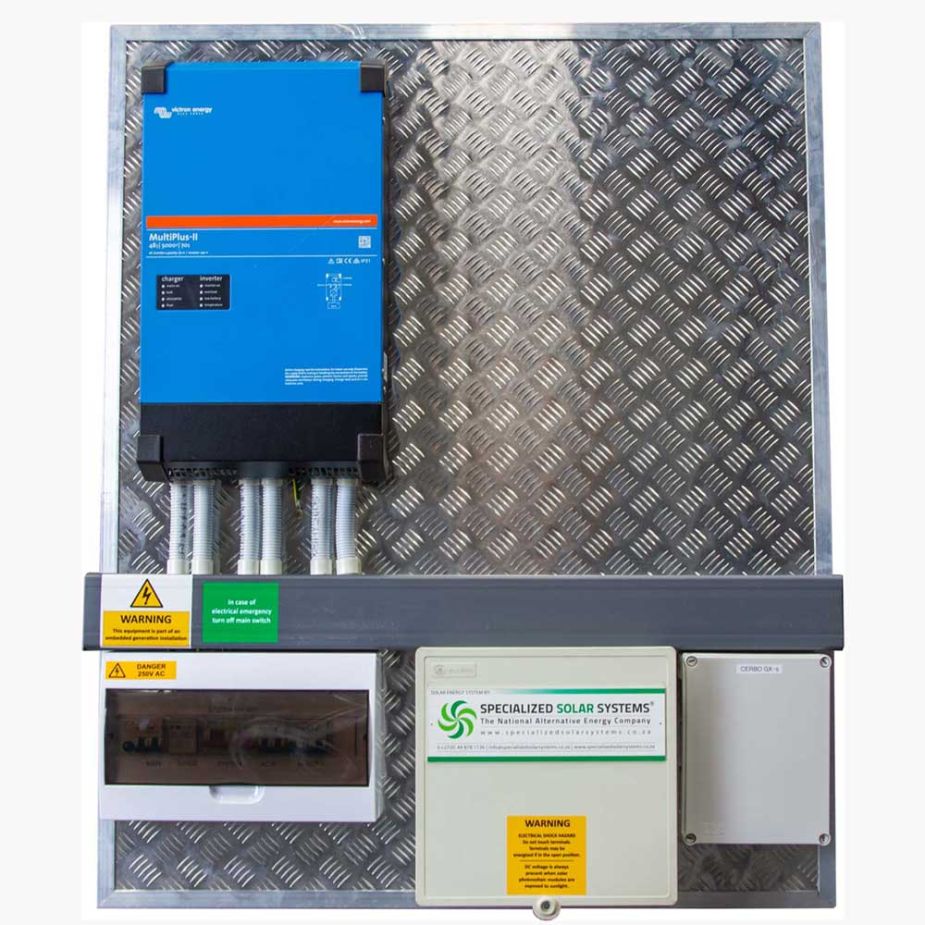

The Build-a-Board range from Specialized Solar Systems is designed for accuracy, convenience, and flexibility. The basic backboard includes a 5 kVA low-frequency Victron Multiplus II inverter/charger, along with an AC distribution box and a single phase DC connection/protection York box. Also included is a Victron Cerbo GX device with a colour touch screen and a long range wifi antenna, allowing for remote management and monitoring of the system. All these components are pre-installed on a backboard, making on-site installation simple and efficient.

The basic principle behind the Build-a-Board system is to afford consumers the opportunity to purchase an energy system that is modular in format and can be adapted to their specific needs. When purchasing this Build-a-Board unit and selecting a battery, one will then have the ability, using the GX device, to monitor the loads and refine the final system size, based on the consumption patterns. By asking your service provider to connect your system to the VRM Portal, you now have remote expertise to again assist you in getting the right system for your specific use. This takes the guesswork out of sizing an energy system and also allows for potential growth at a later stage, if required.

ADD-ON OPTIONS

MINIMUM SIZE LiFePO4 BATTERY OPTIONS

Storagedock ES5K Battery:

  • 5.12kWh capacity

Abel Energy 5.4K Battery:

  • 5.4 kWh capacity

Additional battery sizes are available:

  • Storagedock ES7K (7kWh)
  • Abel Energy 9.6kWh
  • Storagedock ES10K (10kWh)
  • Storagedock ES15K (15kWh)
  • Storagedock ES20K (20kWh)

Please note that up to four batteries of the same size can be connected in parallel. Please ask your sales representative for more information in this regard. Also ensure that the communication cables that connect to the GX device are installed correctly, giving access to readings from all connected batteries.



VICTRON SMARTSOLAR MPPT OPTIONS for the addition of solar panels

  • SMARTSOLAR 150/35 MPPT: Can support up to 1.8 kWp solar array
  • SMARTSOLAR 150/45 MPPT: Can support up to 2.3 kWp solar array
  • SMARTSOLAR 150/60 MPPT: Can support up to 3.0 kWp solar array
  • SMARTSOLAR 150/70 MPPT: Can support up to 3.6 kWp solar array
  • SMARTSOLAR 150/85 MPPT: Can support up to 4.4 kWp solar array
  • SMARTSOLAR 150/100 MPPT: Can support up to 5.5 kWp solar array
  • SMARTSOLAR RS 450/200 MPPT: Can support up to 11.5 kWp solar array

Please note that multiple MPPT’s can be added to the system to support larger solar arrays. Please ask your sales representative for more information in this regard. Also ensure that the communication cables that connect to the GX device are installed correctly, giving access to readings from all connected MPPT’s.
