BOSCO Edenvale 120kWh/60kVA Back-up System
120KWH/60KVA BOSCO Back-up and Peak Shaving System

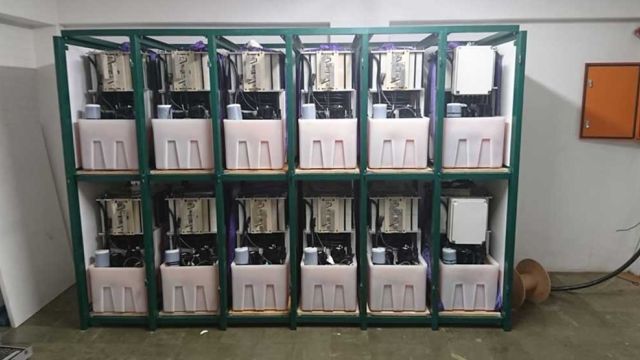

12 x Redflow ZBM 2 (240kg – 10kWh per battery) batteries in conjunction with 6 x 10KVA Victron Inverter Chargers, ( 20KVA Per Phase)were installed at BOSCO printed circuits to assist with load shedding and also peak shaving in Edenvale, Gauteng Province, South Africa. The Victron energy system will be running a Hub2 System with 3x 17KVA SMA Grid-tie Inverters connected to the output of the Victron Quattro inverters.
[huge_it_gallery id=”39″]
The full Installation of the battery and Victron System took 4 days to complete. Redflow batteries were supplied and fitted by Specialized Solar Systems. The Victron equipment was supplied and fitted by Soventix.
Peak shaving is the process of reducing the amount of energy purchased from the utility company during peak hours when the charges are highest. Many businesses are paying for their electricity consumption on a time-of-use basis.
For more info contact info@specializedsolarsystems.co.za
