5kVA Hybrid Solar System Overview
The 48V 5kVA 10kWh 5265Wp Home Solar System provides a reliable hybrid energy solution for grid-connected homes with higher energy demands. It combines proven Victron technology with lithium battery storage and solar generation. As a result, it improves energy stability and reduces reliance on the grid.
In addition, all core components are pre-assembled, pre-wired, and mounted on a dedicated backboard assembly. This structured design keeps wiring neat, reduces installation time, and ensures a clean and consistent system layout. Therefore, installers can complete installations faster while maintaining high-quality results.

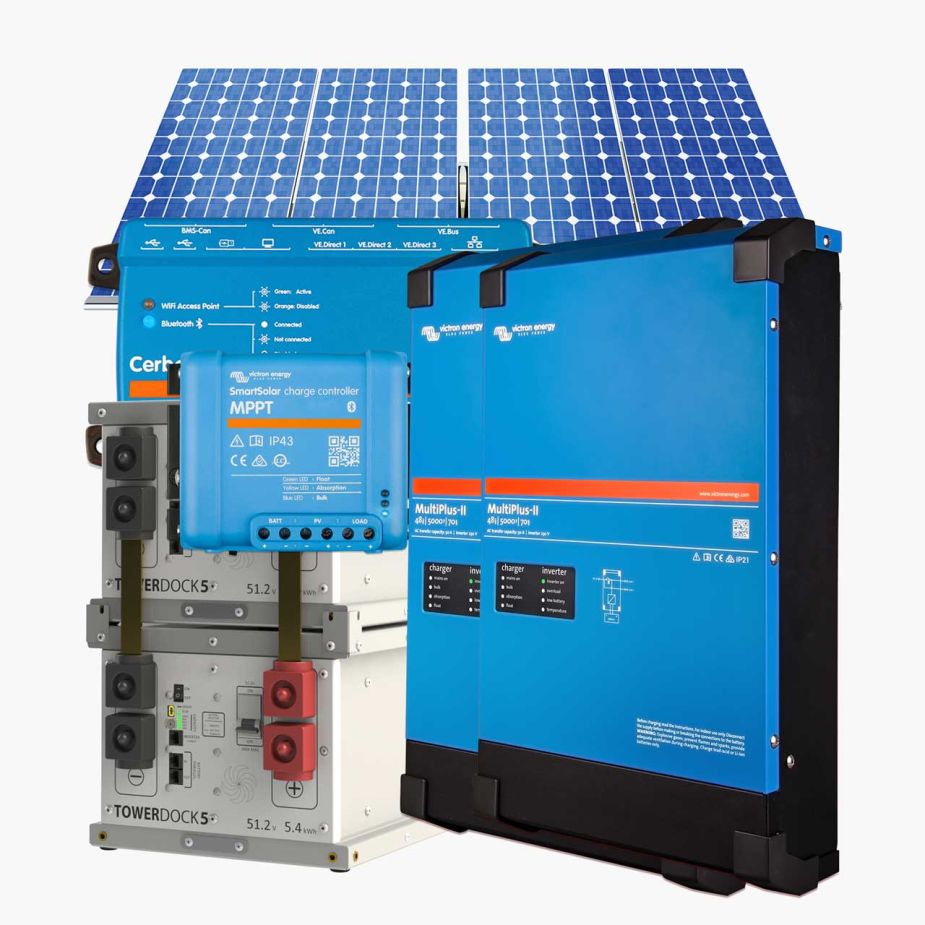

Key Components
The system includes the following core components:
- Inverter/Charger: Victron MultiPlus-II 48/5000/70-50 230V inverter manages energy flow between solar, battery, and grid supply.
- Solar Charge Controller: Victron SmartSolar 250/100-Tr VE.Can MPPT regulates solar input and ensures efficient battery charging.
- Batteries: 2 × towerDOCK 5 lithium batteries providing 10.8kWh of reliable, maintenance-free energy storage.
- Solar Panels: 9 × 585W solar panels delivering a total of 5265Wp of clean energy generation.
What’s Included
The system is supplied as a fully integrated backboard solution. Therefore, it arrives ready for installation with all major components mounted and connected:
- Backboard assembly with mounted components, wiring, and protection
- Cerbo GX device with enclosure for monitoring and control
- DC protection box and DC distribution board with surge protection (250/100)
- AC sub distribution boards (AC1 and AC2 for essential and non-essential loads)
- Combiner box (3-in-1) and communication cabling (VE.Direct and RJ45)
- Battery cable kit for secure and reliable connection
What’s Not Included
- Installation labour, site wiring, trunking, and mounting hardware
- Final AC connections and Certificate of Compliance (COC)
Main Benefits
- Pre-Assembled Backboard Design: All components are mounted and wired for faster and cleaner installation
- Expanded Energy Storage: Increased battery capacity supports longer runtime and improved load coverage
- Hybrid Energy Management: The system integrates solar, battery, and grid supply in a controlled and efficient way
- Remote Monitoring: Full system visibility through the GX platform
In summary, the 48V 5kVA 10kWh 5265Wp Home Solar System provides a structured and ready-to-install hybrid solution. It improves energy stability while increasing solar utilisation for homes with higher energy requirements.
Furthermore, Specialized Solar Systems builds each unit with a strong focus on quality and consistency. The team assembles every system using trusted components and proven configurations. As a result, this system forms part of a growing range of reliable solar solutions designed for long-term performance.
Overview of Hybrid Solar Systems
A hybrid solar system works with both solar power and the utility grid. It stores energy in batteries for use during outages or peak demand. As a result, it improves energy efficiency while maintaining grid support when needed.
