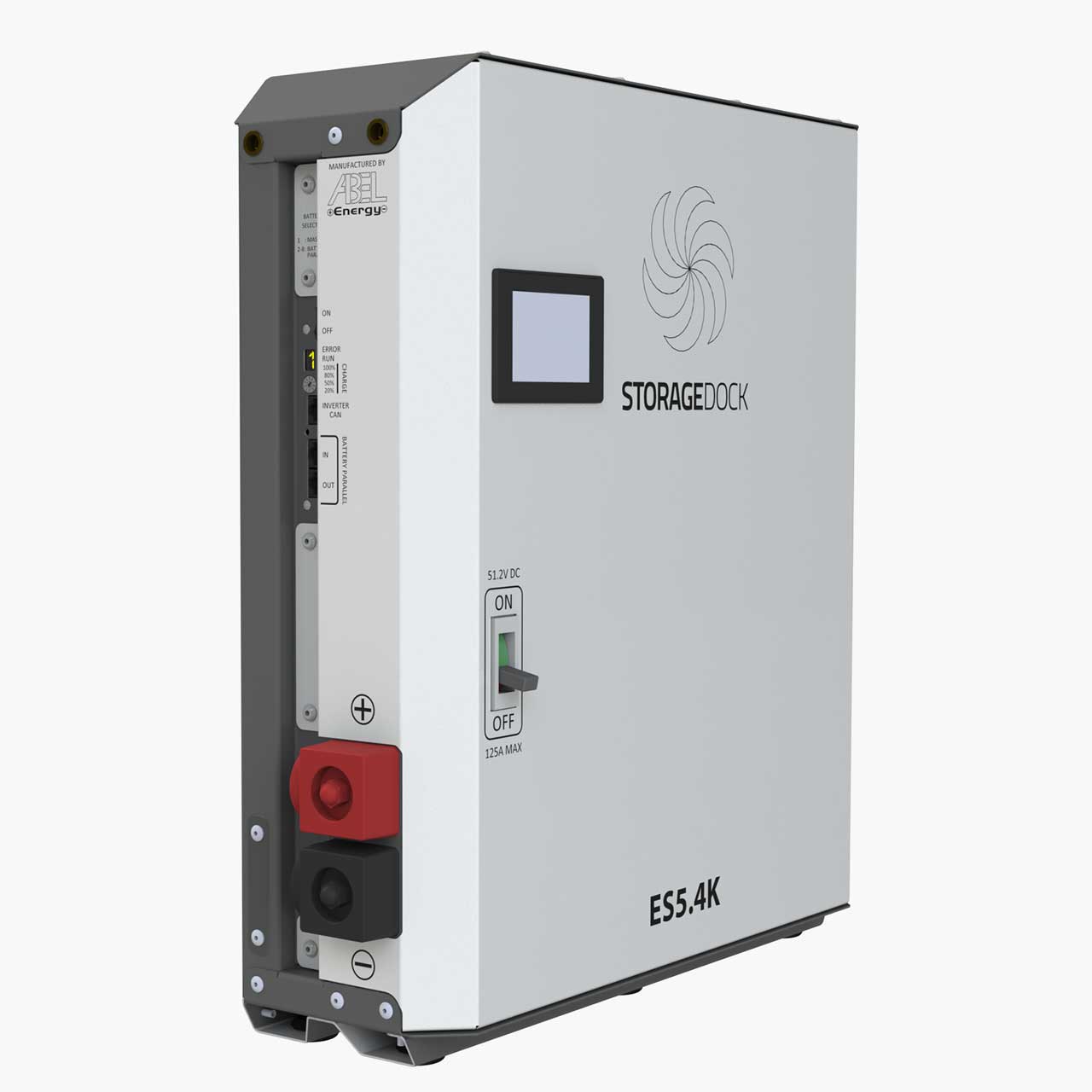

5.40 kWh 51.2V LiFePO4 (LFP) StorageDOCK Battery

The Storagedock ES5.4K is a premium 51.2V LiFePO4 battery designed for high-performance residential and commercial energy storage. Delivering 5.4kWh of total energy, this unit features bolted Grade A Prismatic cells and a 10-year warranty, making it a robust cornerstone for 48V power systems.

Request pricing

Documentation

Installation Manuals

Enquiry

Industrial-Grade Performance & Durability

The Storagedock ES5.4K (51.2V / 106Ah) is built to the highest standards of lithium technology. By utilizing bolted Grade A LiFePO4 Prismatic cells with a 5000N clamped force and MICA-based dividers, this battery offers exceptional structural integrity and thermal stability. Designed for longevity, it provides 4.32kWh of usable energy at 80% Depth of Discharge and is rated for 4,000 cycles.

Smart Monitoring & System Intelligence

This battery features a comprehensive user interface, including an integrated 3-page color touch screen for real-time data. For remote management, the ES5.4K includes a Bluetooth App for both Android and iOS, alongside CAN-bus communication specifically optimized for Victron Energy ecosystems. The system records all historic parameters and features integrated SOC (State of Charge) and SOH (State of Health) communications for precise energy management.

Advanced Safety & Scalability

Safety is paramount, with a built-in 100A BMS and a 125A circuit breaker with trip function. To maintain optimal cell health, an integrated 3A active cell balancer works continuously to prevent voltage drift. For larger energy requirements, the system is highly scalable, allowing up to 8 units to be connected in parallel to create a massive 43.2kWh energy bank. The unit is housed in a durable galvanized steel cell pack with a polymer-coated steel shell, suitable for wall or floor mounting.

Key Product Specifications

Battery Type: Grade A LiFePO4 Prismatic Cells (Bolted)
Nominal Voltage: 51.2 VDC
Total Energy Capacity: 5.4 kWh (106 Ah)
Usable Energy: 4.32 kWh (@ 80% DoD)
User Interface: 3-Page Color Touch Screen & Bluetooth App
Communication: CAN-bus (Victron Interface)
Protection: 125A Circuit Breaker (with trip) & 100A BMS
Recommended Inverter: 5kVA
Scalability: Parallel up to 8 Units
Warranty: 10 Years / 4000 Cycles @ 80% DoD

Technical Specifications ES5.4K – 51.2V
Product code	ES5.4K
Battery type	Grade A LiFePO₄ prismatic cells, bolted
Number of internal modules	1
Nominal voltage	51.2 V
Nominal Ah	106 Ah
Total energy capacity	5.4 kWh
Available energy @ 80% DOD	4.32 kWh
Recommended charge current	0.5C
Maximum charge current	80 A
Bulk / Absorption charge voltage	56.2 VDC
Float voltage	56.2 VDC
Sync voltage	Over ruled by BMS ± 55.2 VDC
Recommended discharge current	0.5C
Maximum discharge current	100 A
Protection: Circuit breaker type	125 A with trip
BMS ampere & number	100 A × 1
Recommended inverter size	5 kVA
Maximum parallel of units	8
Parallel ampere per unit: Discharge	100A / 200A / 250A / 300A / 300A / 300A / 300A / 300A
Parallel ampere per unit: Charge	80A / 160A / 200A / 250A / 250A / 250A / 250A / 250A
CAN-bus communication	Yes
Recommended operating temp: Charge	5° – 45°C
Recommended operating temp: Discharge	0° – 50°C
Warranty period	10 Years / 4000 cycles @ 80% DOD
Nett weight	45 kg
Dimensions (h x w x d)	550 mm x 510 mm x 170 mm
Recommended cable size	50 mm²
Installation type	Indoors – wall / floor
Ventilation distance	200 mm
Installation conditions	Dry. Clean. Regulated temperature
Enclosure	Galvanized steel cell pack. Polymer coated steel shell
User interface	3 “page” colour touch screen
Essential accessories	Storagedock 100A cable kit
