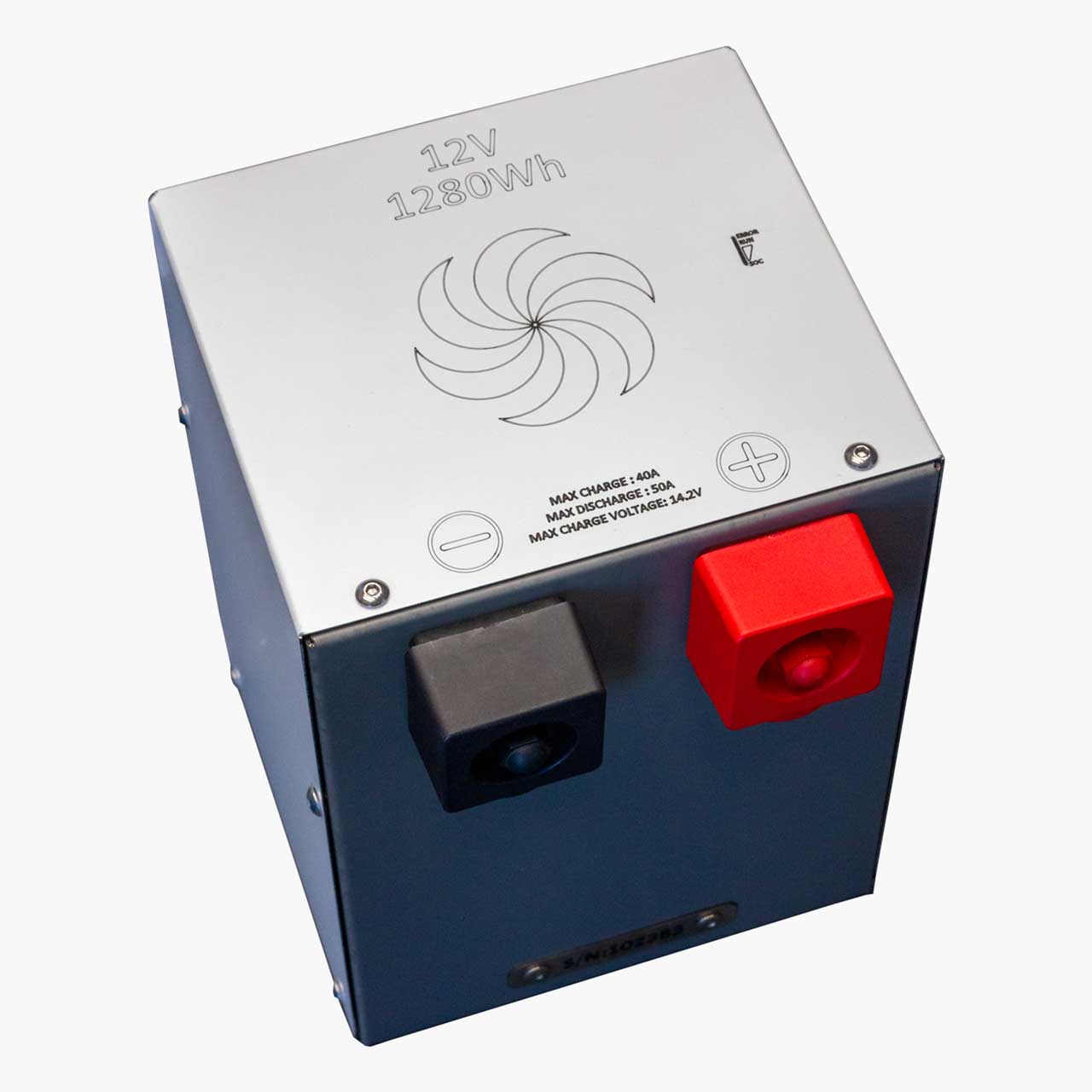

1.28 kWh 12.8V LiFePO4 (LFP) StorageDOCK Battery
The Storagedock ES1.28K is a reliable, entry-level 12.8V LiFePO4 battery designed for light-duty backup and portable power. Featuring Grade A Prismatic cells and a 1.28kWh capacity, it serves as a high-performance, long-lasting alternative to traditional lead-acid batteries for small home electronics and camping applications.
Request pricing
Efficient & Compact Energy Storage
The Storagedock ES1.28K (12.8V / 100Ah) provides 1.024kWh of usable energy at a conservative 80% Depth of Discharge. Built with heat-resistant polymer insulated cells and a clamped force of 5000N, this unit ensures structural stability and thermal safety. Its compact, polymer-coated steel enclosure makes it a durable choice for wall or floor installations in protected indoor environments.
Intelligent Battery Management
To ensure peak performance and longevity, the integrated Battery Management System (BMS) automatically balances individual cells when the State of Charge (SOC) rises above 90%. The BMS is engineered to protect your investment by disconnecting the load if individual cell parameters fall outside of safe operating ranges. Regular full charging is recommended to maintain optimal cell balance and health.
Safety & Application Guidelines
This autonomous battery is optimized for smaller systems, with a recommended maximum inverter size of 0.5kVA. For comprehensive protection, the unit features an internal 120A main disconnect fuse. Please note that this is an autonomous unit without CAN-bus communication or parallel connection ports, designed specifically for simplified, standalone power needs.
Key Product Specifications
- Battery Type: Grade A LiFePO4 Prismatic Cells
- Nominal Voltage: 12.8 VDC
- Total Energy Capacity: 1.280 kWh (100 Ah)
- Usable Energy: 1.024 kWh (@ 80% DoD)
- BMS Rating: 80A Charge / 80A Discharge
- Standard Discharge Current: 40A
- Recommended Inverter: 0.5 kVA Maximum
- Protection: Internal 120A Main Disconnect Fuse
- Dimensions: 250mm (H) x 185mm (W) x 210mm (D)
- Warranty: 5 Years / 4000 Cycles @ 80% DoD
| Product code | BMC-1280/12 |
|---|---|
| Battery type | Grade A LiFePO₄ prismatic cells |
| Insulated cells | Heat resistant polymer |
| Number of internal modules | 1 |
| Clamped force | 5000N |
| Nominal voltage | 12.8 VDC |
| Nominal Ah | 100 Ah |
| Total energy capacity | 1.280 kWh |
| Available energy @ 80% DOD | 1.024 kWh |
| Standard charge current | 25 A |
| Maximum charge current | 40 A |
| Charge voltage “bulk” / “absorption” | 14.1 VDC |
| Charge voltage “float” | 13.8 V |
| Standard discharge current | 40 A |
| Maximum discharge current | 50 A |
| Discharge cut-off voltage | 12 V @ 0.005C |
| Protection | Main disconnect fuse of 120 A (internal fuse) |
| BMS ampere | Charge: 80 A / Discharge: 80 A |
| BMS screen | None |
| Recommended inverter size | 0.5 kVA maximum |
| Parallel connection port | No |
| CAN-bus communication | No |
| Recommended operating temp: Charge | 0° – 45°C |
| Recommended operating temp: Discharge | 0° – 50°C |
| Warranty period | 5 Years / 4000 cycles @ 80% DOD |
| Nett weight | 11kg |
| Dimensions (h x w x d) | 250mm x 185mm x 210mm |
| Installation type | Indoors / protected undercover use – Wall / floor |
| Ventilation distance | 150mm clear on all sides with no obstructions |
| Installation conditions | Dry. Clean. Regulated temperature – Wall / floor |
| Enclosure | Polymer coated steel enclosure |
