Description

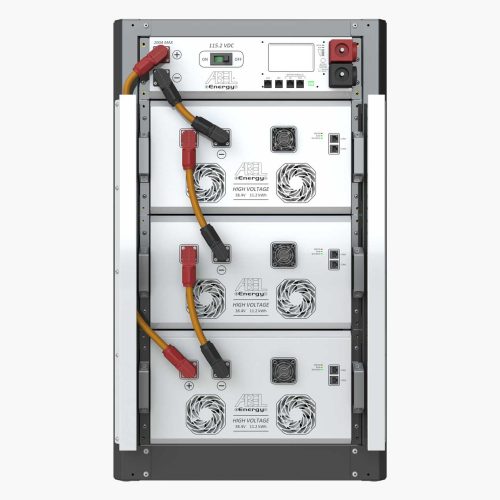

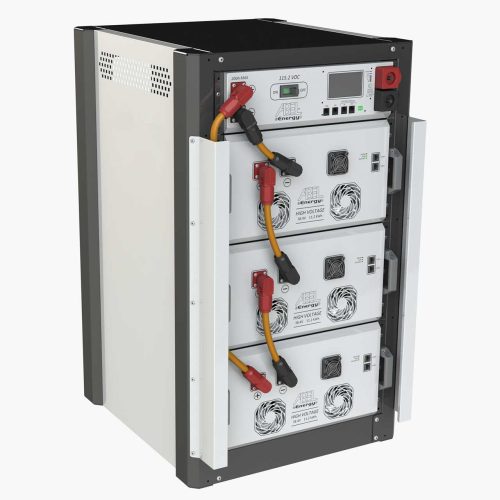

The Storagedock HV-COM Stackable LiFePO₄ Battery is a modular high-voltage storage system built for commercial energy applications. It operates at 115.2 VDC and provides 33.6 kWh capacity using Grade A prismatic LiFePO₄ cells. This chemistry improves safety, offers thermal stability, and extends cycle life compared to other lithium-ion options.
The system uses three 11.2 kWh modules connected in series and managed by a Battery Management Unit (BMU). The BMU controls charging, discharging, and safety functions, while built-in protections ensure reliable operation. In addition, up to four complete stacks can be connected in parallel, allowing easy expansion for larger sites.
The integrated BMS communicates via CAN-Bus and works seamlessly with Victron GX devices such as the Cerbo GX or Venus GX. As a result, users can monitor performance remotely, optimise system efficiency, and extend battery lifespan. This makes the HV-COM Battery well suited for modern energy storage systems where visibility and reliability matter.
- Nominal capacity: 33.6 kWh (26.8 kWh at 80% DoD)
- Nominal voltage: 115.2 VDC
- Maximum charge/discharge current: 200 A
- Cycle life: 4000 cycles at 80% DoD, up to 8000 expected
- Modular, stackable design with parallel scalability
- Integrated BMU and CAN-Bus monitoring
Weighing 300 kg and housed in a compact rack (620 × 720 × 1010 mm), the Storagedock HV-COM Battery installs easily and transports safely. With a 10-year warranty and advanced LiFePO₄ technology, it delivers dependable, long-term energy storage for commercial environments.
Technical Data Sheet with Installation Instructions (HV Commercial Battery installation)
