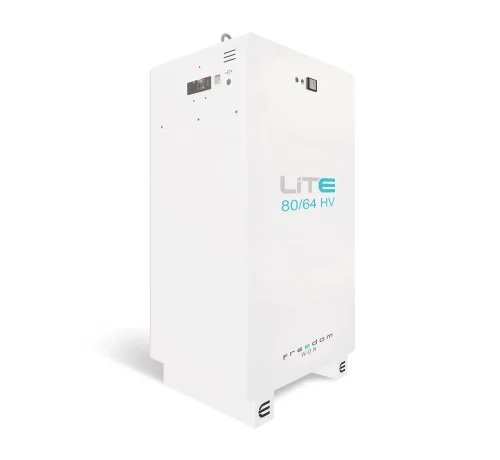

80kWh 52V Freedom Won Lite Business 80/64 LiFePO₄ Battery
The Lite Business 80/64 LiFePO₄ Battery is a robust energy storage solution designed for commercial and business solar systems. With a total capacity of 80kWh and 64kWh usable at 80% depth of discharge (DoD), it provides reliable power, advanced safety features, and long operating life.
Key Features:
- High Energy Capacity: 80kWh total, 64kWh usable at 80% DoD, and 72kWh at 90% DoD.
- Power Output: 50kW maximum continuous discharge and 40kW continuous charge power.
- Wide Inverter Compatibility: Nominal voltage of 52V, designed to suit 48V inverters.
- Durable Design: Aluminium enclosure with IP20 rating for safe indoor or covered installation.
- Advanced Protection: Built-in BMS with shunt-trip breaker, overcurrent, voltage, and temperature safeguards.
- User Interface: SOC display, error light, reset button, USB port, and CAN bus communication.
Specifications:
- Nominal Voltage: 52V (range: 47V–56V)
- Usable Energy: 64kWh at 80% DoD
- Max Discharge Power: 50kW
- Battery Weight: 637kg (crated: 697kg)
- Dimensions: 1350 × 1015 × 370mm (created: 1506 × 1186 × 568mm)
Warranty & Service Life:
- Warranty: 10 years or 6000 cycles at 80% DoD
- Service Life: >16 years at 80% DoD, >20 years at 50% DoD
Essential Accessories:
- USB “printer” cable (supplied)
- CAN bus termination resistor (supplied)
- CAN bus cable (RJ45 LAN, not supplied — special cables may be required for some inverters)
The Freedom Won Lite Business 80/64 Battery combines high capacity, robust LiFePO₄ chemistry, and intelligent management for reliable, long-lasting energy storage in commercial applications.
