This off-grid solar system with backup generator and grid-support produces 5kw-15kw electrical output and was recently installed in Oudtshoorn, South Africa.
The installation components consisted of 24 x 2V deep cycle cells, 1 x 5KW 48V Victron inverter charger, 100 amp MPPT and battery monitor.

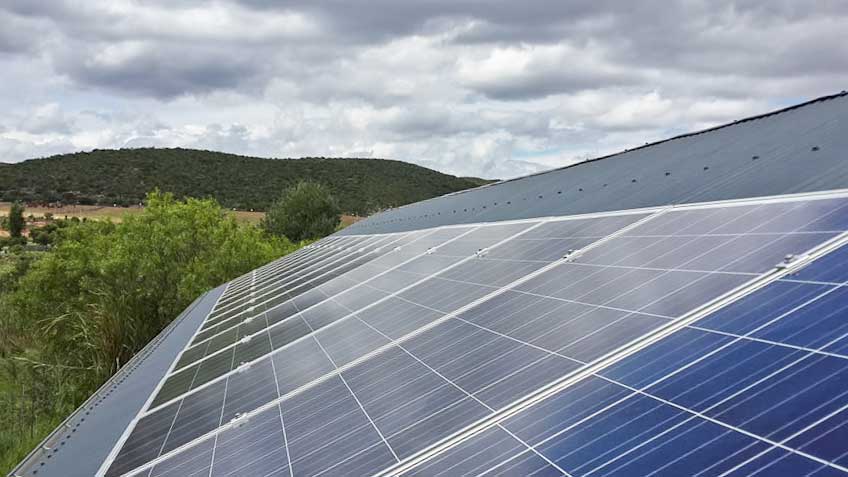

The roof contains 15 large solar panels with a rail mount bracket system. This rail mount system uses minimal screws to the roof and can be installed on tiles or corrugated iron. The rails use a clamp method to fasten the panels onto the roof.
The system has a cross over 3 pole switch to enable the client to change from Eskom back up to Generator back up in the event of emergencies.
For further information on off-grid and grid support systems contact email@example.com
